Partition Grille on Rear Seat Backrest

Partition Grille on Rear Seat Backrest

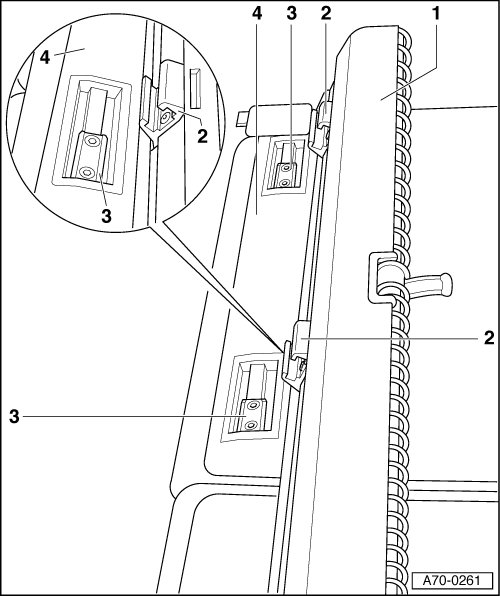

1 Partition Grille

Removing

- Fold both rear seat backrests forward.

- Press partition grill - 1 - from 1/3 rear seat backrest in direction toward 2/3 rear seat backrest - 4 -.

- Remove partition grille.

Installation

- Guide holding bracket - 2 - into recess on 2/3 backrest.

- Press partition grill - 1 - in direction of 1/3 backrest, lift 2/3 seat back slightly, to do so.

2 Retaining Profile

3 Bracket

4 2/3 Rear Seat Backrest
