Sun Shade

Sun Shade

Removing





- Remove lower trim. Refer to => [ Lower Rear Lid Trim ] Lower Rear Lid Trim.

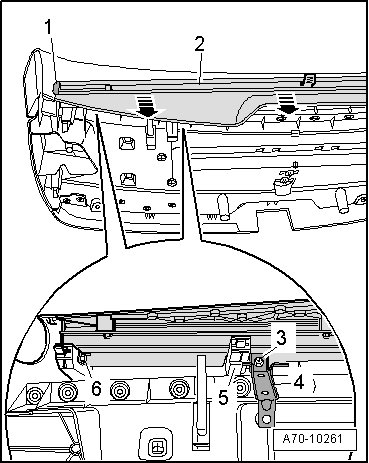

- Remove cover cap - 1 -.

- Remove bolts - 3 - and - 6 -.

- Remove support pieces - 4 - from spring clamp mount - 5 -.

- Pull sun shade - 2 - out of lower trim in - direction of arrow -.

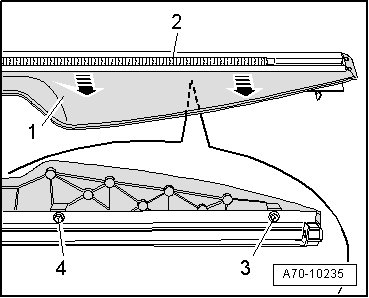

- Remove bolts - 3 - and - 4 -.





- Using a screwdriver, carefully pry sun shade trim - 1 - out of sun shade - 2 - in - direction of arrow -.

Installation

Installation is reverse of removal, but note the following:

- Clamps must sit in sun shade cut-outs.

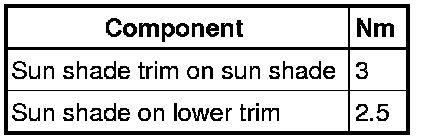

Tightening Specifications
