Seat Pan Assembly Overview

Power Front Memory Seats

• From 07.2006, the usual wiring harness routing to connector station under front seat => [ Connectors, Disconnecting ] has been replaced with modular wiring routing => [ Modular Wiring Routing, from 07.2006, Assembly Overview ] Standard Front Seats Overview.

• The modular wiring routing has not been implemented for all countries.

• Check version of front seat and of vehicle and perform repairs accordingly.

• Note the two possible versions of the modular wiring routing, Modular Light or Modular => [ Modular Wiring Routing Versions ] Standard Front Seats Overview.

Seat Pan Assembly Overview

• On the front seat, the upper and lower seat pan frames can be separated and replaced individually.

• When removing seat pan, make sure the bushings in bearing points (upper and lower frame threaded connection) are not damaged. These bushings cannot be replaced with workshop materials.

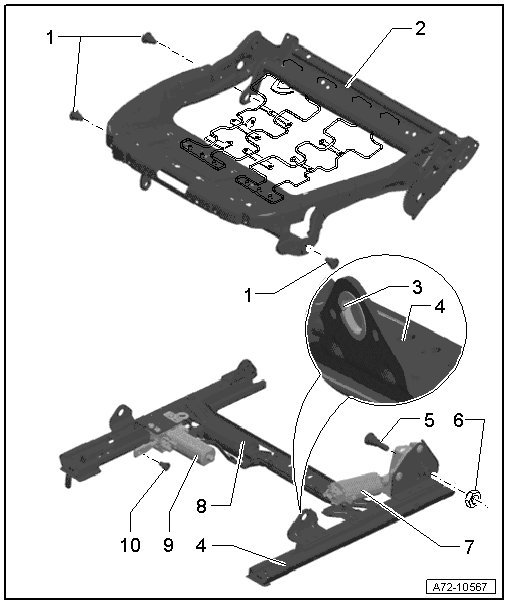

1 Screw, self-locking

• 28 Nm

• Qty. 3

• Replace

• Threaded holes for screws must always be cleaned (for example, with thread cutter)

2 Seat pan upper frame

• Removing and Installing => [ Power Front Memory Seats Seat Pan ] Power Front Memory Seats Seat Pan

3 Bushing

• Inserted in all bracket locations

• Cannot be replaced with workshop materials

• if bushings are damaged, assembly part must be replaced.

4 Seat pan lower frame

• Removing and Installing => [ Power Front Memory Seats Seat Pan ] Power Front Memory Seats Seat Pan

5 Bolt

• 28 Nm

• Replace

6 Nut

• Threaded holes for screws must always be cleaned (for example, with thread cutter)

7 Driver Seat Height Adjustment Motor (V245) or Front Passenger's Seat Height Adjustment Motor (V246)

• Removing and Installing => [ Driver and Front Passenger Height Adjustment Motors ] Power Front Memory Seats

8 Seat forward/back adjustment motor (V288)

• Cannot be removed and installed with workshop materials

• Stays on seat pan lower frame => [ (Item 4) Seat pan lower frame ]

9 Driver seat angle adjustment motor (V243) or front passenger seat angle adjustment motor (V244)

• Removing and Installing => [ Seat Tilt Motor Adjustment ] Power Front Memory Seats

10 Screw, self-locking

• 20 Nm

• Replace

• Threaded holes for screws must always be cleaned (for example, with thread cutter)
