Seat Forward/Back Adjustment Motor

Power Front Memory Seats

• From 07.2006, the usual wiring harness routing to connector station under front seat => [ Connectors, Disconnecting ] Power Front Memory Seats Overview has been replaced with modular wiring routing => [ Modular Wiring Routing, from 07.2006, Assembly Overview ] Standard Front Seats Overview.

• The modular wiring routing has not been implemented for all countries.

• Check version of front seat and of vehicle and perform repairs accordingly.

• Note the two possible versions of the modular wiring routing, Modular Light or Modular => [ Modular Wiring Routing Versions ] Standard Front Seats Overview.



Seat Forward/Back Adjustment Motor

• With malfunctioning motor, the lower frame of seat pan must be replaced => [ Power Front Memory Seats Seat Pan ] Power Front Memory Seats Seat Pan.

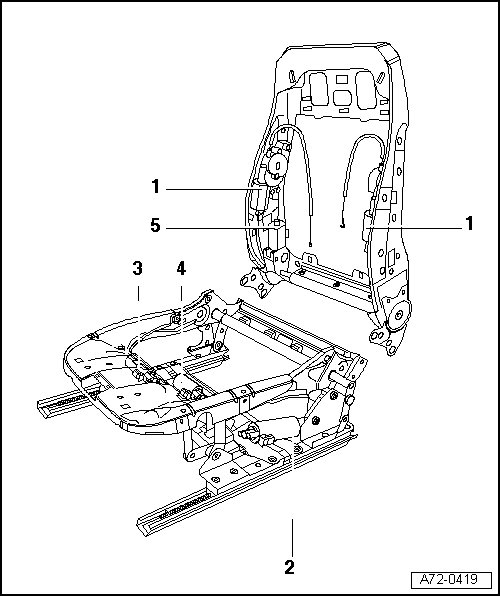

1 Lumbar support adjustment motors (Qty. 2)

2 Seat height adjustment motor

3 Motor for seat inclination adjustment

4 Longitudinal seat adjustment motor

5 Backrest adjustment motor
