Divided Rear Seat Backrest Center Armrest

Divided Rear Seat Backrest Center Armrest

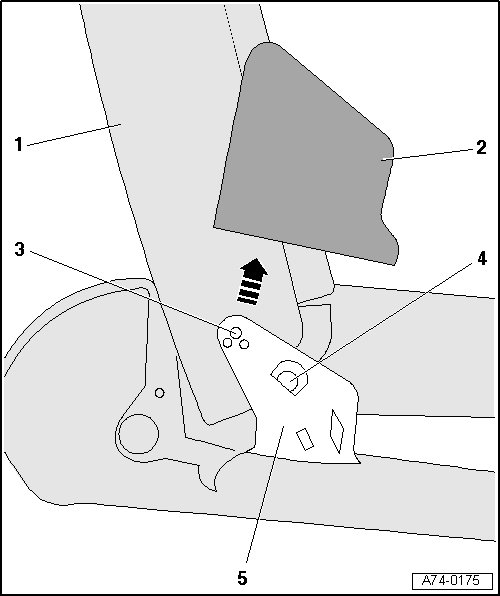

1 Center Armrest

• Removing

- Fold center armrest - 1 - downward.

- Remove outer hinge trim - 2 - in - direction of arrow -.

- Remove the bolts - 3 -.

- Remove pin - 4 - from hinge arm - 5 -.

- Remove center armrest - 1 -.

• Installing

To install, perform the steps used in removal in reverse order.

2 Outer Hinge Trim

3 Bolt

4 Bolts

5 Hinge Arm

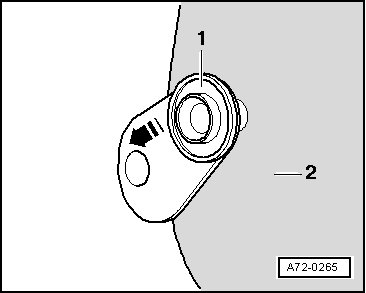

Removing bearing bushing





- Press off bushing - 1 - using a flat-head screwdriver in - direction of arrow -.

2 Backrest cover
