Headrests

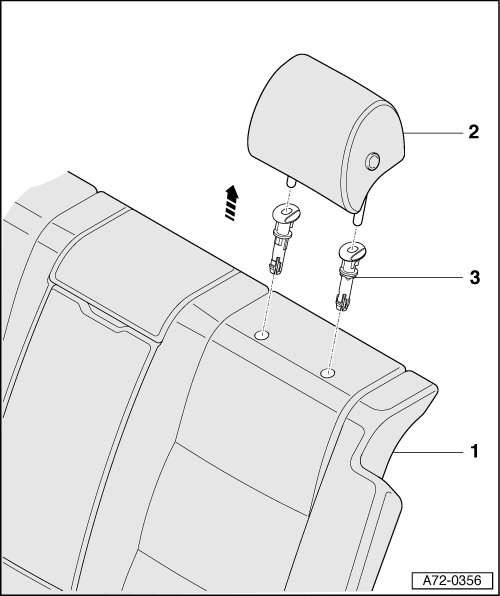

Headrests





1 Rear Seat Backrest

2 Outer Headrests

With Locking Mechanism, Removing and Installing. Refer to => [ Headrests with Locking Mechanism ] Headrests With Locking Mechanism

Without Locking Mechanism, Removing and Installing. Refer to => [ Headrests without Locking Mechanism ] Headrests Without Locking Mechanism

3 Headrest Guide

With release button

Must always be installed on left side
