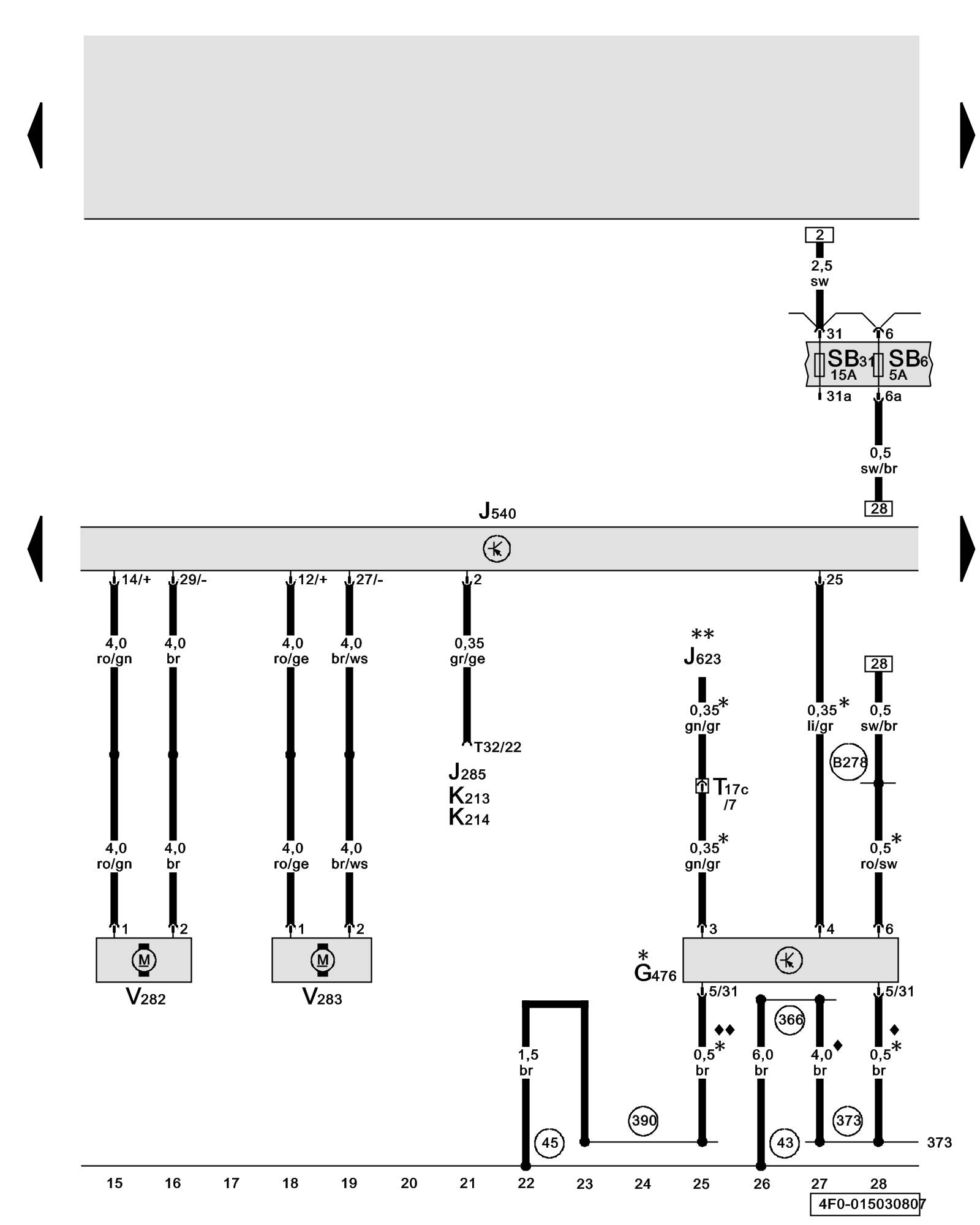

Diagram 15/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Electric Park/Handbrake Control Module, Left and Right Parking Brake Motor, Clutch Position Sensor, Electric Park/Handbrake Indicator Lamp, Electric Park/Handbrake Malfunction Indicator Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G476 - Clutch Position Sensor Locations

J285 - Instrument Cluster Control Module Locations

J540 - Electric Park/Handbrake Control Module Overview of Control Modules

J623 - Engine Control Module (ECM) Overview of Control Modules

K213 - Electric Park/Handbrake Indicator Lamp

K214 - Electric Park/Handbrake Malfunction Indicator Lamp

SB6 - Fuse 6 (on fuse panel) Overview of Fuses

SB31 - Fuse 31 (on fuse panel) Overview of Fuses

T17c - 17-Pin Connector, white, connector station electronics box in left plenum chamber Overview of Connector Stations and Connectors

T32 - 32-Pin Connector, grey, on instrument cluster

V282 - Left Parking Brake Motor Locations

V283 - Right Parking Brake Motor Locations

(43) - Ground Connection (on right lower A-pillar) Overview of Ground Connections in Interior of Vehicle

(45) - Ground Connection (behind instrument panel, center) Overview of Ground Connections in Interior of Vehicle

(366) - Ground Connection 1 (in main wiring harness)

(373) - Ground Connection 8 (in main wiring harness)

(390) - Ground Connection 25 (in main wiring harness)

(B278) - Plus Connection 2 (15a) (in main wiring harness)

* - Models with manual transmission

** - => Wiring Diagram Engine

♦ - Through October 2005

♦♦ - From November 2005

Previous Diagram 15/2 (Tracks 1-14)

Next Diagram 15/4 (Tracks 29-42)
