Diagram 039/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


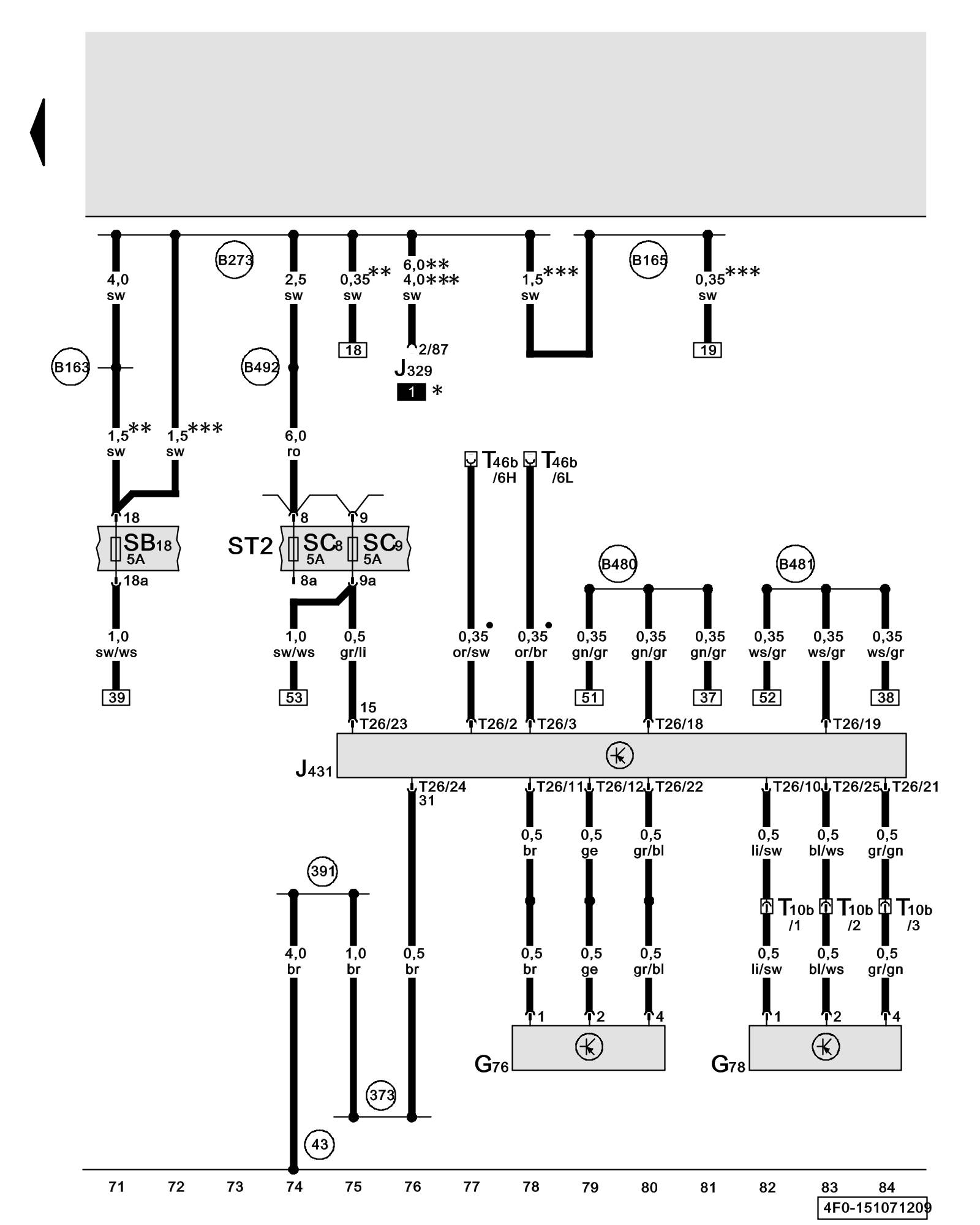

Headlamp Range Control Module, Left Front and Rear Level Control System Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G76 - Left Rear Level Control System Sensor Self Leveling Suspension

G78 - Left Front Level Control System Sensor Self Leveling Suspension

J329 - Power Supply Relay (terminal 15) Overview of Relay Carrier

J431 - Headlamp Range Control Module Overview of Control Modules

SB18 - Fuse 18 (on fuse panel B) Overview of Fuses

SC8 - Fuse 8 (on fuse panel C) Overview of Fuses

SC9 - Fuse 9 (on fuse panel C) Overview of Fuses

T10b - 10-Pin Connector, blue, connector station A-pillar, left Overview of Connector Stations and Connectors

T26 - 26-Pin Connector, black, on headlamp range control module

T46b - 46-Pin Connector, right CAN separating connector

(43) - Ground Connection (on right lower A-pillar) Overview of Ground Connections in Interior of Vehicle

(373) - Ground Connection 8 (in main wiring harness)

(391) - Ground Connection 26 (in main wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B165) - Plus Connection 2 (15) (in interior wiring harness)

(B273) - Plus Connection (15) (in main wiring harness)

(B480) - Connection 16 (in main wiring harness)

(B481) - Connection 17 (in main wiring harness)

(B492) - Plus Connection 3 (15) (in interior wiring harness)

- CAN-Bus (data wire)

* - 9-point relay carrier, behind driver's storage compartment

** - Through October 2005

*** - From November 2005
