HID Headlamp Bulbs

HID Headlamp Bulbs

• Adjust the headlamps after performing any work that could have affected their adjustment.

Removing

CAUTION!
Risk of death due to high voltage, injury risk and environmental hazard.

- With ignition switched off, disconnect battery Ground (GND) cable. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

Left Headlamp - Vehicles with 6-cyl. Gasoline Engine

- Remove reservoir for power steering => [ ] Preparing to Work on Headlamps.

Right Headlamp - Vehicles with 6-cyl. Gasoline Engine

- Remove air filter housing => [ Air Filter Housing, Removing
- Vehicles With 6-Cylinder Gasoline Engine ] Preparing to Work on Headlamps.

Right Headlamp - Vehicles with 4.2L MPI Engine

- Remove air filter housing => [ Air Filter Housing, Removing
- Vehicles with 4.2L MPI Engine ] Preparing to Work on Headlamps.

Right Headlamp - Vehicles with 4.2L FSI Engine

- Remove air filter housing => [ Air Filter Housing, Removing
- Vehicles with 4.2L FSI Engine ] Preparing to Work on Headlamps.

Left Headlamp - Vehicles with 10-cyl. Gasoline Engine

- Remove air filter housing => [ Left Air Filter Housing, Removing
- Vehicles with 10-cyl. Gasoline Engine ] Preparing to Work on Headlamps.

Right Headlamp - Vehicles with 10-cyl. Gasoline Engine

- Remove air filter housing => [ Right Air Filter Housing, Removing
- Vehicles with 10-cyl. Gasoline Engine ] Preparing to Work on Headlamps.

All:

- Release securing guides - arrows - and remove headlamp housing cover.

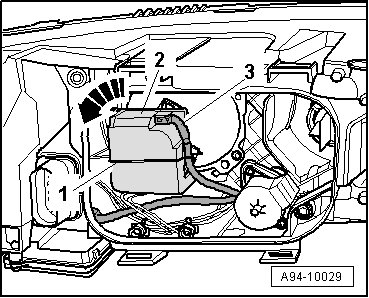

- If present, pivot securing clip - 1 - for electrical harness connector to side.





- Rotate ignition coil - 2 - for gas discharge lamp counter-clockwise - arrow -.

- Disconnect harness connector - 3 - at ignition coil for gas discharge lamp.

- Remove ignition coil for gas discharge lamp.

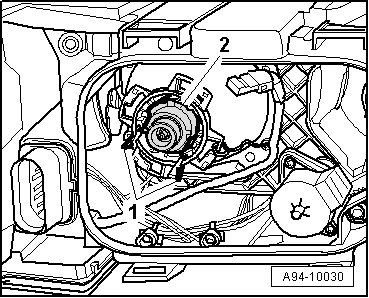

- Open the wire retainer - 1 -.





- Remove the HID bulb - 2 - out of headlamp housing.

Installing

Install in reverse order of removal, observing the following:

- Insert the new HID bulb into the housing without touching the bulb with bare hands.

• Observe installation position: Upper tab at bulb socket must engage at recess for gas discharge lamp.

- If present, secure gas discharge lamp using wire clamp.

• Harness connector must only be connected with ignition coil installed.

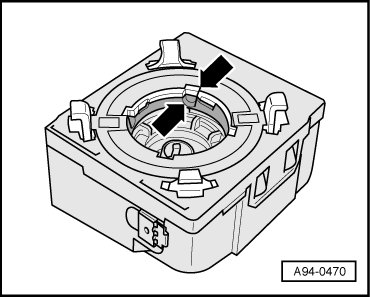

- Check if recess in housing of ignition coil for gas discharge lamp and recess in pressure ring align completely with each other - arrows -.





- Attach ignition coil for gas discharge lamp to headlamp and fasten clockwise until stop.

• Ignition coil must turn freely.

• Arrow on housing points upward.

- Connect harness connector.

- Secure electrical harness connector using securing clip.

- Close the housing lid.

- Connect battery. Required actions => [ Vehicles with : ] Battery, Disconnecting and Connecting.
