Light Bulb for Rear Interior/Reading Light with Angular Diffusion Lens, Replacing

Light Bulb for Rear Interior/Reading Light with Angular Diffusion Lens, Replacing

Removing

- Remove rear interior/reading light. Refer to => [ Rear Interior/Reading Light with Angular Diffusion Lens ] Rear Interior/Reading Light with Angular Diffusion Lens.

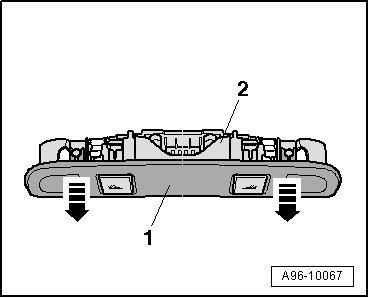

- Carefully pull diffusion lens - 1 - for interior light out of socket - 2 - - arrows -.

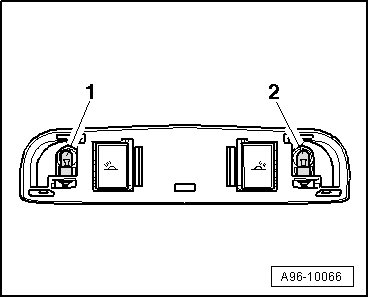

- Remove bulb - 1 - or - 2 - (12V, 5 W) from socket.





Installing

Install in reverse order of removal, observing the following:

- Press on interior light cover until it engages.
