HID Headlamps Headlamp Housing Repair Kit, Installing







Headlamp Housing Repair Kit, Installing

Adjust the headlamps after performing any work that could have affected their adjustment.

Headlamp mounting tabs that have broken off can be replaced by installing the repair kit. Completely replacing the headlamp is not necessary.

There are different repair kits for left and right headlamps.

Procedure

- Remove headlamp with broken mounting tab. Refer to => [ Headlamp, when Reusing Current Headlamp ] Headlamp, when Reusing Current Headlamp.

- Remove remains of broken mounting tab at headlamp housing.

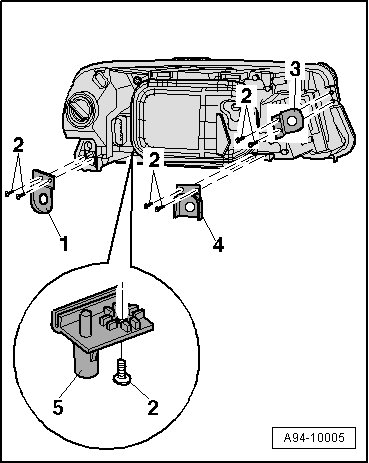

- Attach mounting tab - 1 - or - 3 - or - 4 - or - 5 - of repair kit at headlamp housing and secure tab using bolts - 2 -.





Tightening specification, refer to => [ HID Headlamps Assembly Overview ] HID Headlamps Assembly Overview.
