Front Turn Signal Lamp Bulbs

Front Turn Signal Lamp Bulbs

• Adjust the headlamps after performing any work that could have affected their adjustment.

Removing

- Loosen the front area of the wheel housing liner.

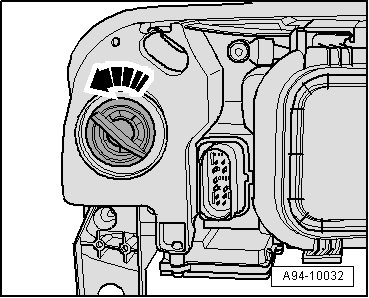

- Turn socket - arrow - counterclockwise and pull out of headlamp housing.





- Remove lamp from socket.

Installing

Install in reverse order of removal, observing the following:

- Insert bulb in housing, taking care not to touch glass bulb with bare hands.

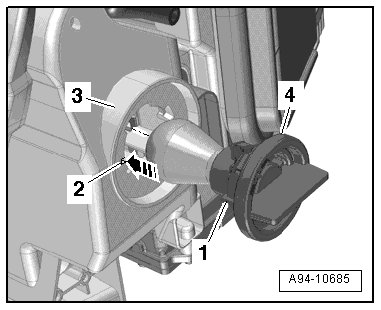

- The socket - 4 - can be installed into the headlamp housing - 3 - in only one position.





• The brace - 1 - on the socket must fit into the guide - 2 - on the headlamp housing - arrow -.

- Install the wheel housing liner.
