Lighting - License Plate Lamp Cracked/Broken/Missing

94 License plate light cracked, broken, loose or missing

94 10 02

2018740/4

January 22, 2010.

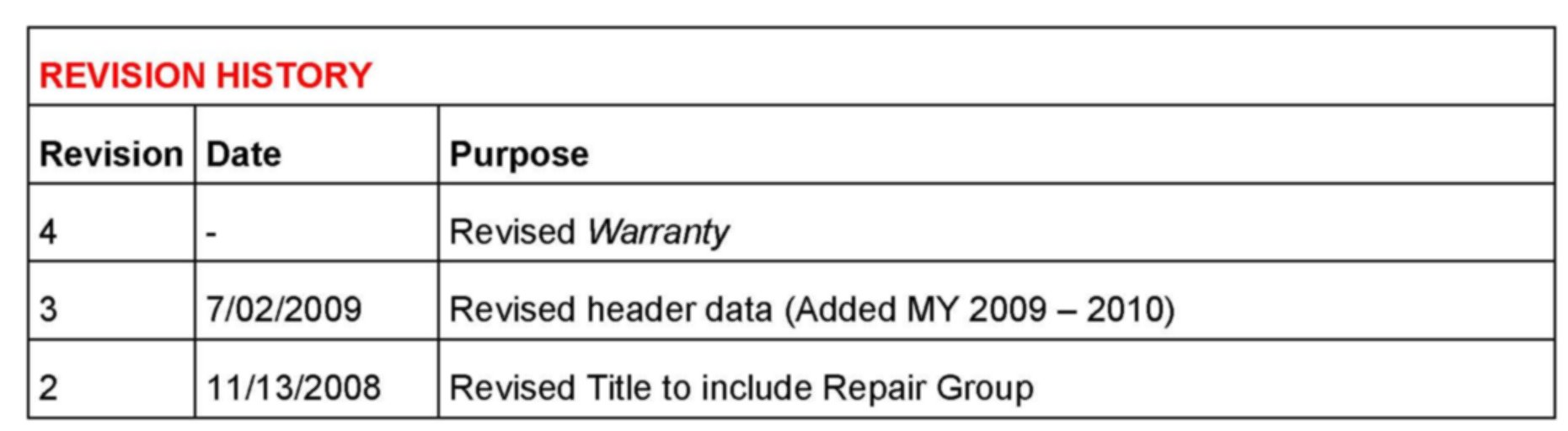

Supersedes Technical Service Bulletin Group 94 number 09-17 dated July 2, 2009 for reasons listed below.

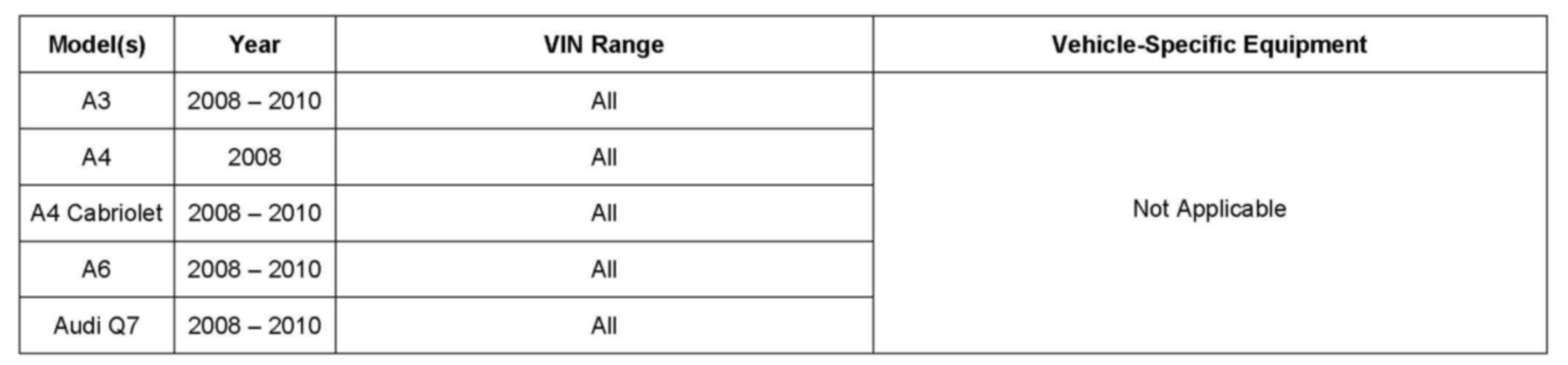

Affected Vehicles





Condition

License plate light broken, loose or missing.

Technical Background

Excess torque applied to mounting screw during production.

Production Solution

Improved check of torque values.

Service

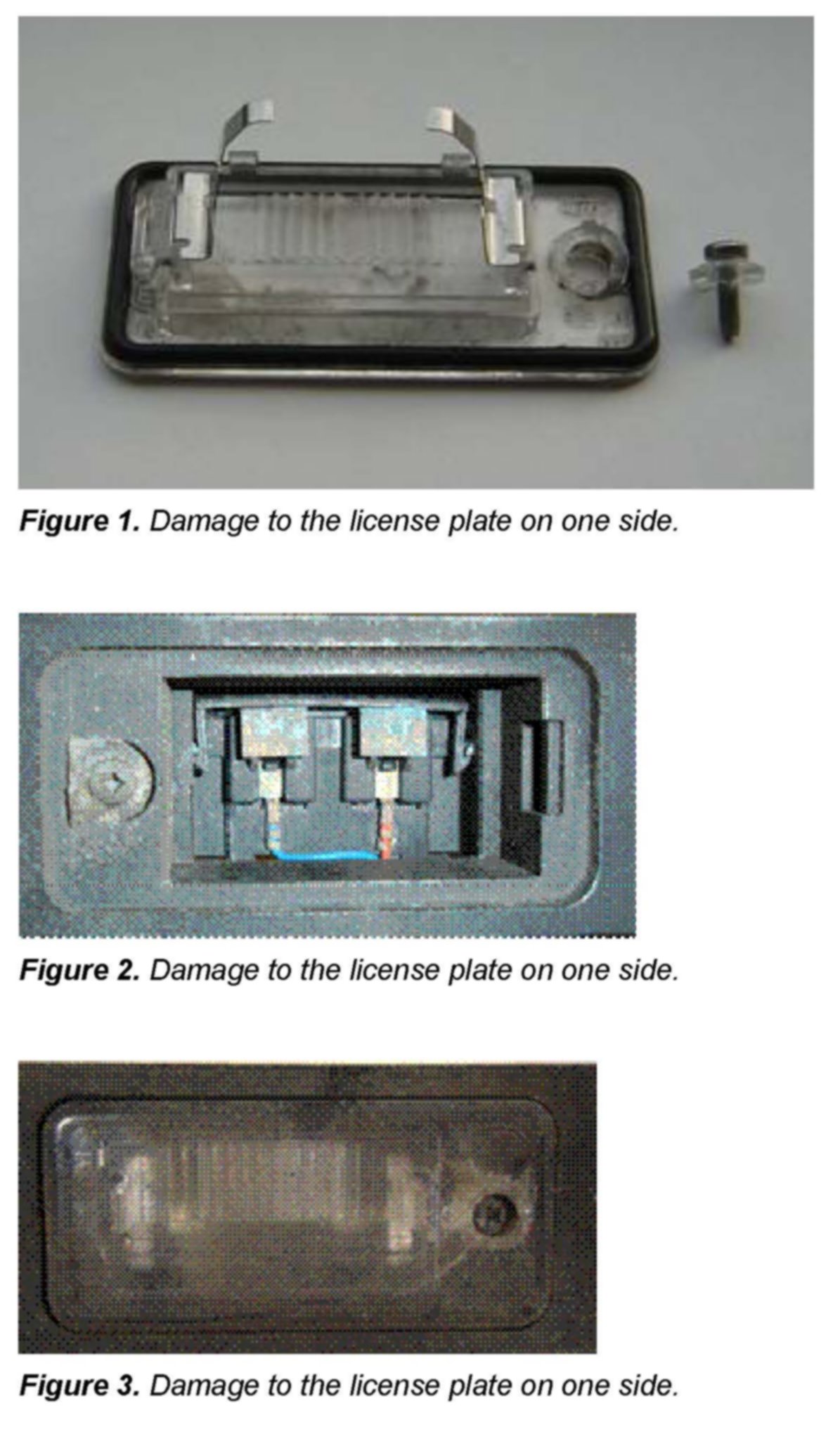

If there is damage to the license plate light on one side (see images), then replace both of them.

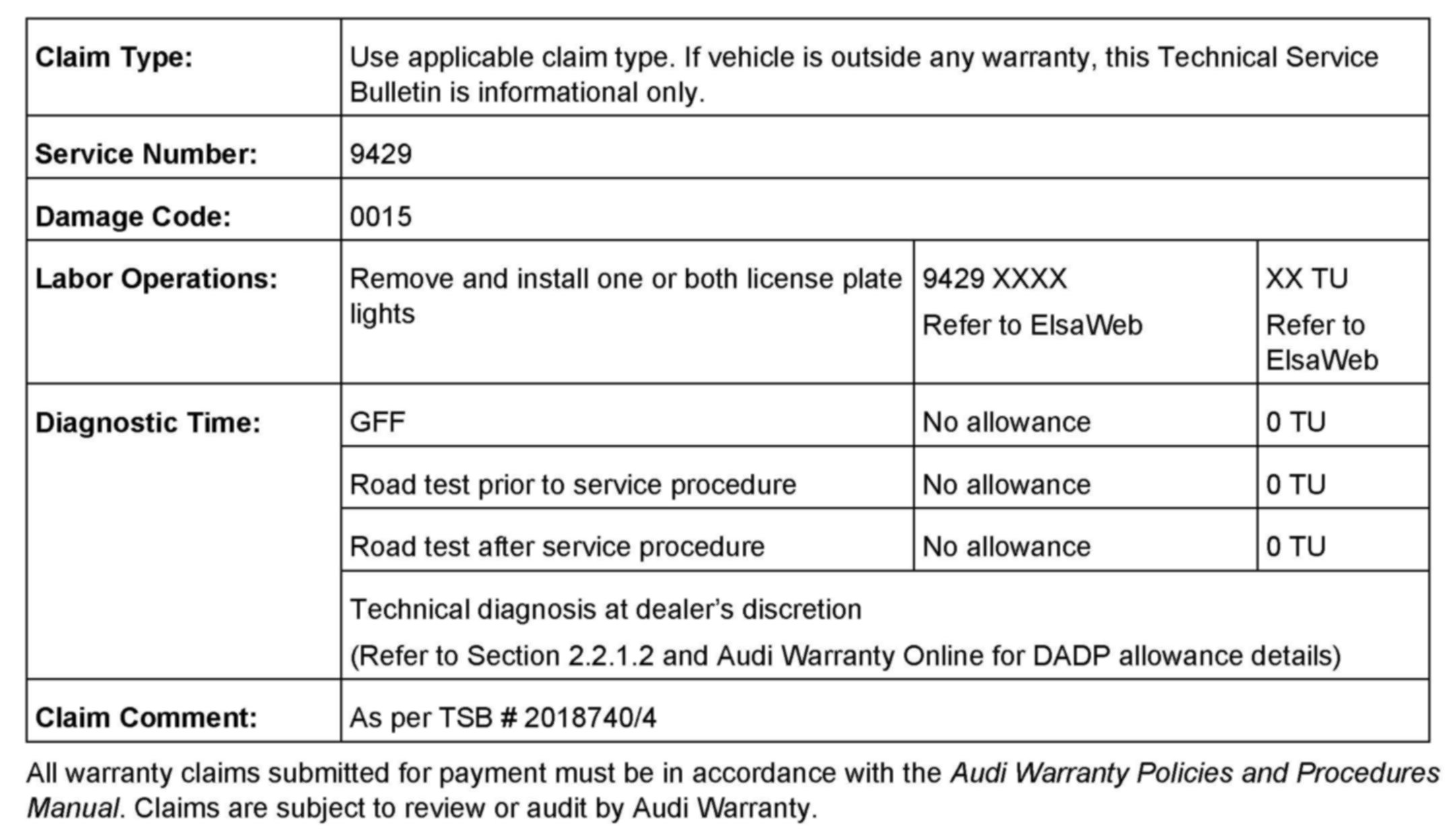

Warranty

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
