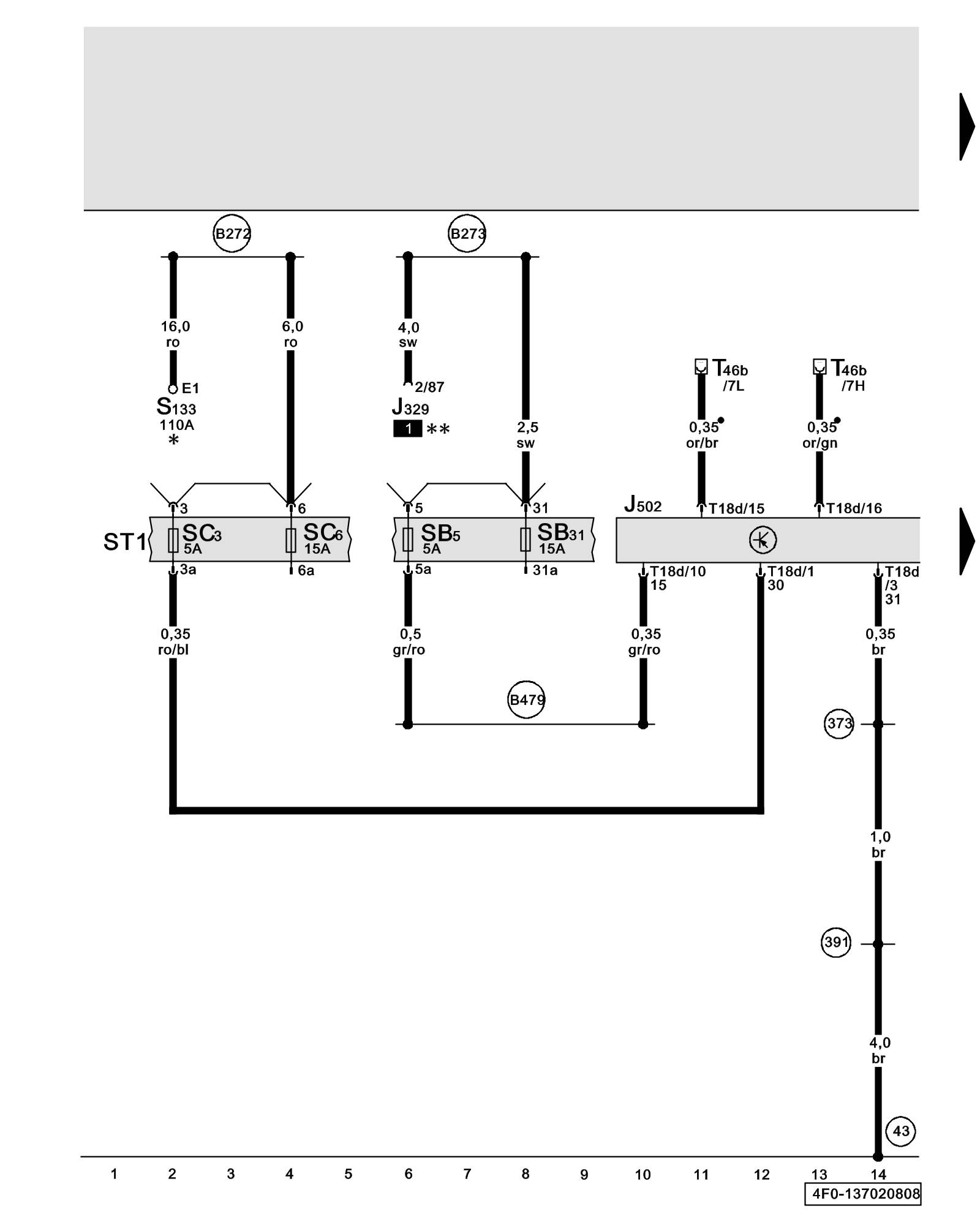

Diagram 137/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Tire Pressure Monitoring Control Module, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J329 - Power Supply Relay (terminal 15) Overview of Relay Carrier

J502 - Tire Pressure Monitoring Control Module Overview of Control Modules

S133 - Safety Fuse 3 Overview of Fuses

SB5 - Fuse 5 (on fuse panel B) Overview of Fuses

SB31 - Fuse 31 (on fuse panel B) Overview of Fuses

SC3 - Fuse 3 (on fuse panel C) Overview of Fuses

SC6 - Fuse 6 (on fuse panel C) Overview of Fuses

T18d - 18-Pin Connector, black, on tire pressure monitoring control module

T46b - 46-Pin Connector, right CAN separating connector

(43) - Ground Connection (on right lower A-pillar) Overview of Ground Connections in Interior of Vehicle

(373) - Ground Connection 8 (in main wiring harness)

(391) - Ground Connection 26 (in main wiring harness)

(B272) - Plus Connection (30) (in main wiring harness)

(B273) - Plus Connection (15) (in main wiring harness)

(B479) - Connection 15 (in main wiring harness)

- CAN-Bus (data wire)

* - Main fuse panel, in right rear luggage compartment on battery

** - 9-Pin relay carrier, behind driver's storage compartment
