Tire Monitoring System: Locations

Tire Pressure Monitor System (TPMS)

Tire Pressure Monitor System (TPMS)







1 Tire Pressure Monitoring Transmitter
• Located in the wheel housing, the tire pressure monitoring transmitters are only installed in the High version
• Left Front Tire Pressure Monitoring Transmitter (in wheel housing) -G431-

• Right Front Tire Pressure Monitoring Transmitter (in wheel housing) -G432-

• Left Rear Tire Pressure Monitoring Transmitter (in wheel housing) -G433-

• Right Rear Tire Pressure Monitoring Transmitter (in wheel housing) -G434-

2 Tire Pressure Monitoring Control Module -J502-
• Located under the glove compartment => [ Tire Pressure Monitoring Control Module 1 and 2 ] See Image Below.
3 Rear Tire Pressure Monitoring Antenna -R96-
• Location view => [ Tire Pressure Monitoring Antennas ] See Image Below.
4 Display in Instrument Cluster
5 Front Tire Pressure Monitoring Sensor
• Mounted on wheel valve stem
• Left Front Tire Pressure Monitoring Sensor -G222-

• Right Front Tire Pressure Monitoring Sensor -G223-

• Left Rear Tire Pressure Monitoring Sensor -G224-

• Right Rear Tire Pressure Monitoring Sensor -G225-

• Spare Tire Pressure Monitoring Sensor -G226-


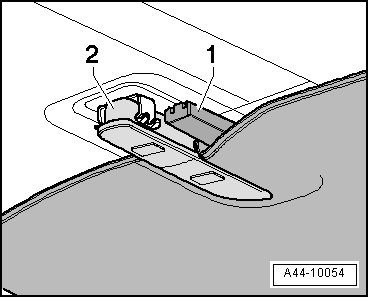

Tire Pressure Monitoring Antennas






1 - Rear Tire Pressure Monitoring Antenna -R96-
The antenna is located behind the rear interior light/reading lamp

Tire Pressure Monitoring Control
Module 1 and 2






1 - Tire Pressure Monitoring Control Module -J502-
1 - Tire Pressure Monitoring Control Module 2 -J793-
Located under the glove compartment
