Coupling station, left A-pillar trim, removing and installing







Coupling station, left A-pillar trim, removing and installing

Removing





- With ignition switched off, disconnect battery Ground (ND) wire => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove the lower A-pillar trim.

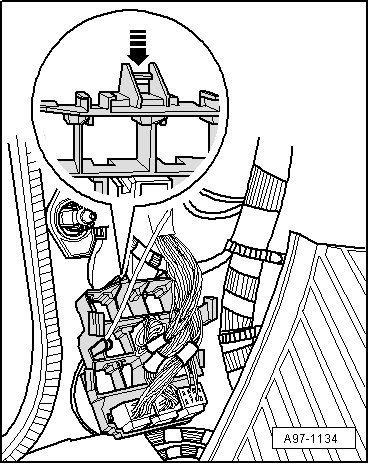

- Press clip in - direction of arrow - and disengage coupling station on A-pillar.

- Unclip fuse panels from coupling station.

- Remove relay or control modules, then unclip respective relay carrier.

For the exact assignment for coupling station on left A-pillar, refer to the current wiring diagram.

Installing

Install in reverse order of removal, observing the following:

- Install the lower A-pillar trim.

- Connect battery. Required actions => [ Vehicles with : ] Battery, Disconnecting and Connecting.
