Airbag Component Overview

Airbag Systems

Airbag Component Overview


Avant shown Sedan similar





1 Front Passenger's Airbag Igniter 1 -N131- and Front Passenger's Airbag Igniter 2 -N132-
2 Front Passenger's Airbag -Off- Key Switch -E224-
• Not applicable to North American market
3 Front Passenger's Side Airbag Crash Sensor -G180-
• Location: In front door
4 Front Passenger's Side Airbag Igniter -N200-
5 Front Passenger's Airbag Disabled Indicator Lamp -K145-
• Location: in center instrument panel vent
6 Front Passenger's Side Curtain Airbag Igniter -N252-
• Location: view => [ Side Curtain Airbag Igniters ] See Image Below.
7 Rear Passenger's Side Airbag (front Passenger's side) Igniter -N202-
• Located: in fixed seatback => [ Rear Side Airbag Igniters ] See Image Below.
8 Rear Side Airbag Crash Sensor (on front Passenger's side) -G257-
• Location: On C-pillar
9 Driver's Side Curtain Airbag Igniter -N251-
• Location: view => [ Side Curtain Airbag Igniters ] See Image Below.
10 Rear Side Airbag Crash Sensor (on Driver's side) -G256-
• Location: On C-pillar
11 Rear Passenger's Side Airbag (Driver's side) Igniter -N201-
• Located: in fixed seatback => [ Rear Side Airbag Igniters ] See Image Below.
Airbag Component Overview Continued (Avant shown Sedan
similar)





12 - Driver's Side Airbag Igniter -N199-

13 - Driver's Side Airbag Crash Sensor -G179-
• Location: In front door

14 - Driver's Airbag Igniter -N95- and Driver's Airbag Igniter 2 -N250-

15 - Airbag Spiral Spring/Return Spring With Slip Ring -F138-
• Located: on the steering column => [ Airbag Spiral Spring ] See Image Below.

16 - Airbag Malfunction Indicator Lamp (MIL) -K75-
• Location: in instrument panel

17 - Airbag Control Module -J234-
• Location: On center tunnel => [ Airbag Control Module ] See Image Below.

18 - Driver's Front Airbag Crash Sensor -G283-
• Location: Near headlights

19 - Front Passenger's Front Airbag Crash Sensor -G284-
• Location: Near headlights

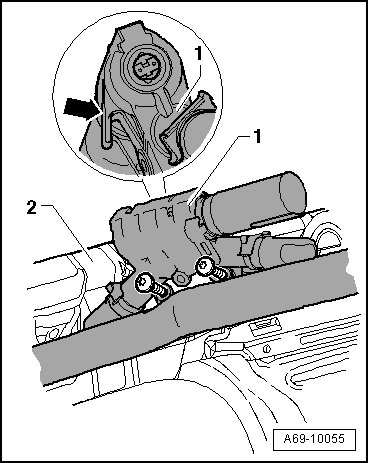

Airbag Control Module






5 - Connector for Airbag Control Module -J234-
Location: On center tunnel

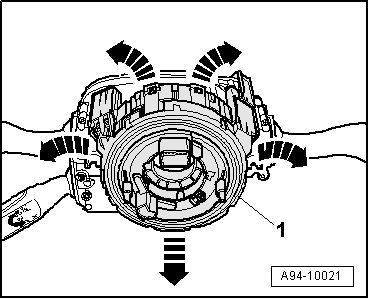

Airbag Spiral Spring






1 - Airbag Spiral Spring/Return Spring With Slip Ring -F138-
Located: on the steering column

Side Curtain Airbag Igniters






1 - Front Passenger Side Curtain Airbag Igniter -N252- / Driver Side Curtain Airbag Igniter -N251-

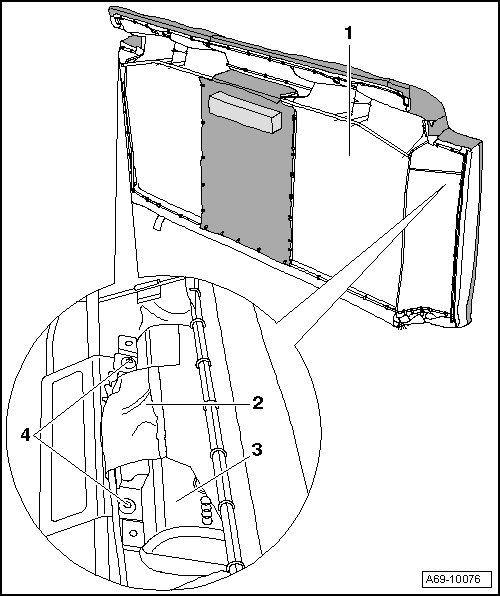

Rear Side Airbag Igniters






3 - Rear Passenger's Side Airbag (front Passenger's side) Igniter -N202- / Rear Passenger's Side Airbag (Driver's side) Igniter -N201-
Located: in fixed seatback
