Power Steering Fluid, Checking

Power Steering Fluid, Checking

- Do not run engine and turn front wheels to straight ahead position.



Fluid Cold (Approximately 20 °C)

- Remove the cap.

- Wipe dipstick off with a clean cloth.

- Screw cap on hand-tight and unscrew again.

• The cap must be fully screwed in order to obtain an accurate fluid level reading.

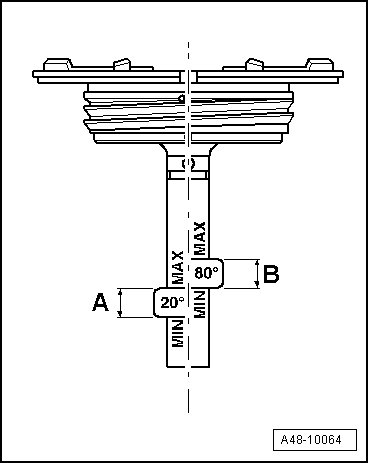

- Check fluid level: Oil level must be within the - A - area.






Fluid at Operating State Temperature (Approximately 80 °C)

- Remove the cap.

- Wipe dipstick off with a clean cloth.

- Screw cap on hand-tight and unscrew again.

• The cap must be fully screwed in order to obtain an accurate fluid level reading.

- Check fluid level: Oil level must be within area - B -.






• Fluid must be drawn off if the level is above the specified range.

• If oil level is below aforementioned area, then the hydraulic system must be checked for leaks. It is not enough to just add fluid.

• Do not use drained hydraulic oil.
