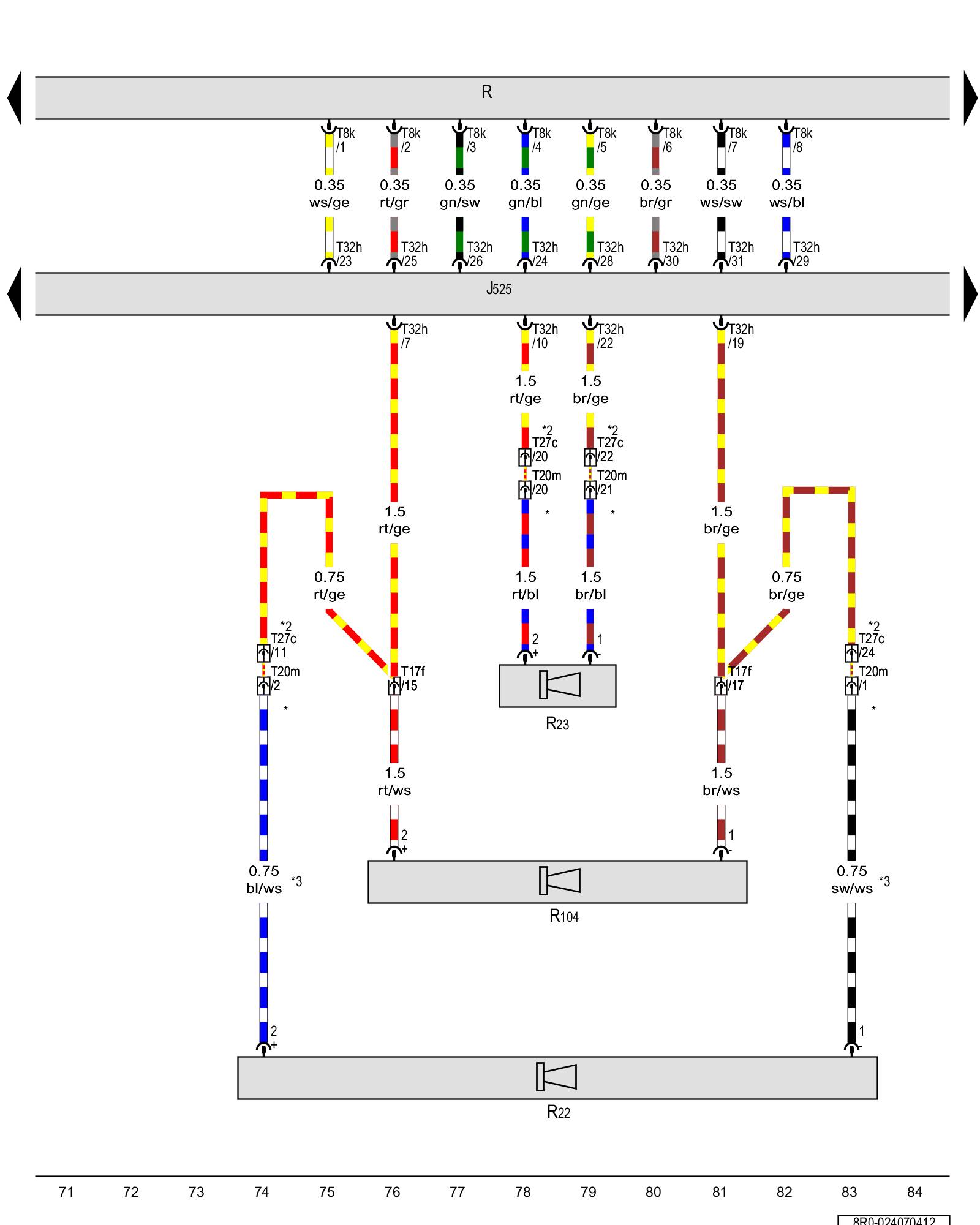

Diagram 24/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital sound system control module, Radio, Right front treble speaker, Right front bass speaker, Right front midrange speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Control Modules in rear part of vehicle, overview

R - Radio Overview of Control Modules in interior of vehicle

R22 - Right front treble speaker

R23 - Right front bass speaker

R104 - Right front midrange speaker

T8k - 8-pin connector Radio -R- (with integrated CD Changer -R41- /DVD Changer -R161- )

T17f - 17-pin connector Overview Of Connector Stations

T20m - 20-pin connector

T27c - 27-pin connector

T32h - 32-pin connector

* - Running change

*2 - Omitted as a running change

*3 - Diameter depends on equipment
