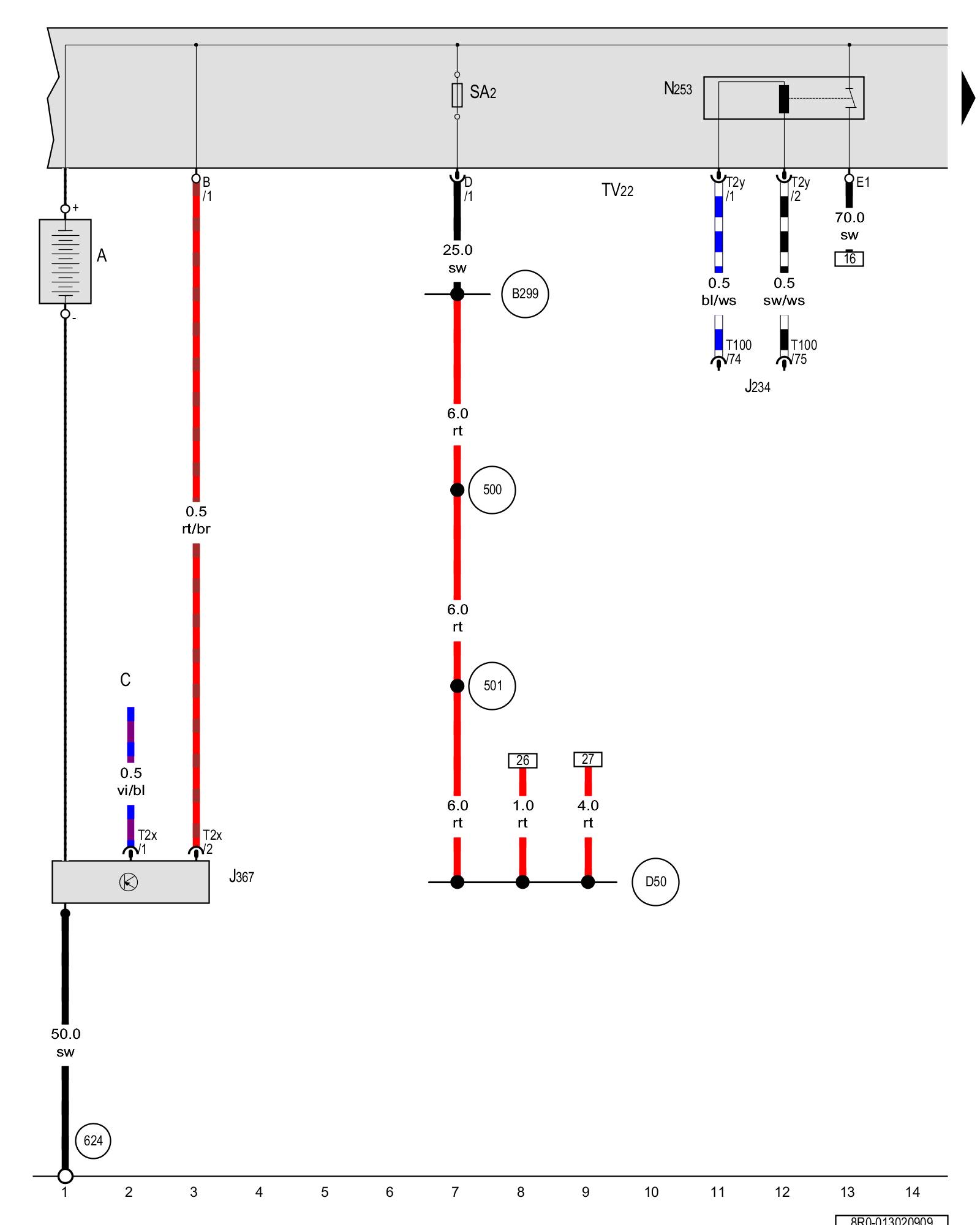

Diagram 13/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Battery, Battery Monitoring Control Module, Battery Interrupt Igniter, Fuse 2 (on fuse panel A), Terminal 30 Wire Junction 2, Battery Jump Start Terminal





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

C - Generator

E1 - Light Switch

J234 - Airbag Control Module Overview of Control Modules in interior of vehicle

J367 - Battery Monitoring Control Module Control Modules in rear part of vehicle, overview

N253 - Battery Interrupt Igniter Overview Of Fuses Airbag Component Locations

SA2 - Fuse 2 (on fuse panel A) Overview Of Fuses

T2x - Double Connector

T2y - Double Connector

TV22 - Terminal 30 Wire Junction 2

T100 - 100-Pin Connector

U6 - Battery Jump Start Terminal

(500) - Threaded Connection 1 - terminal 30 (on relay panel) Overview Of Connector Stations

(501) - Threaded Connection 2 - terminal 30 (on relay panel) Overview Of Connector Stations

(624) - Ground Connection (near starter battery) Locations

(B299) - Plus Connection 3 (30) (in main wiring harness)

(D50) - Plus Connection (30) (in engine compartment wiring harness)

Next Diagram 13/3 (Tracks 15-28)
