Garage Door Opener Control Module

Garage Door Opener Control Module

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing

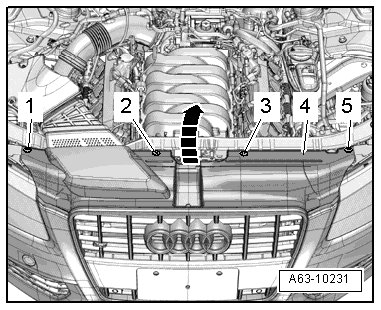

- Remove the screws - 1, 2, 3 and 5 -.

- Lift the cover - 4 - on the lock carrier - arrow - and engage it on the radiator grille.

- Disconnect the electrical connector - 1 -.





- Release the retaining clip - arrow - and remove the garage door opener control module (J530) - item 2 - from the retaining frame.

Installing

Install in reverse order of removal, observing the following:

- Attach the lock carrier cover to the radiator grille.
