Secondary Air Injection System Without Vacuum Control

Secondary Air Injection (AIR) Pump Motor (Via)

Removing






- Remove the front noise insulation - 1 -.

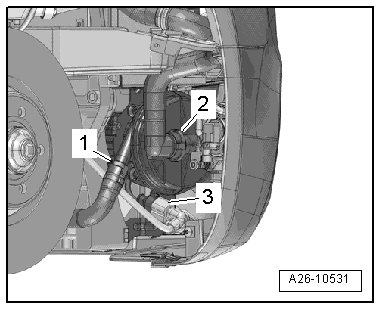

- Disconnect the electrical connector - 3 - on the AIR pump motor.






- Disconnect the hoses - 1 and 2 - for the secondary air injection.

- Unlock the catches - arrows A - and remove the right air intake grille - 1 - from the lower section of the bumper cover - arrow B -.






• The illustration shows the left air intake grille instead.

- Remove the bolts - 1 and 2 - and remove the bumper cover noise insulation toward the rear.






- Remove the bolts - arrows - and remove the secondary air pump.






• The installation location is shown with the bumper cover removed.

Installing

Install in reverse order, paying attention to the following:

• Tightening specification, refer to => [ Secondary Air Injection System without Vacuum Control Overview ] Secondary Air Injection System Without Vacuum Control Overview.

• When installing, bring all cable ties back to same positions.

- Install the bumper cover insulation.

- Install the front noise insulation.
