Fuel Delivery Rate, Checking, RS5 Through MY 2011







Fuel Delivery Rate, Checking, RS5 through MY 2011

Special tools, testers and auxiliary items required

Pressure Tester (VAS 6550) with Hoses (VAS 6550/1) and (VAS 6550/2)

Remote Control (V.A.G 1348/3A) with Remote Control for VAG 1348 (V.A.G 1348/3-3)

Connector Test Set (V.A.G 1594C)

Measuring container, fuel-resistant

Procedure






- Follow all test requirements. Refer to => [ Test Conditions ] Test Conditions.

- Remove the rear bench seat.

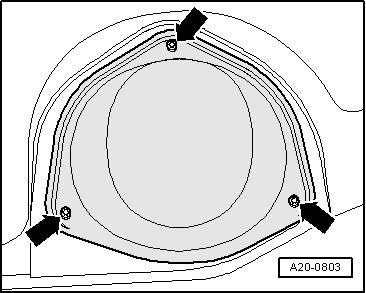

- Remove the locking flange cover - arrows -.

- Disconnect the connector - 1 - on the locking flange.






Ignore - 2 -.

- Remove the cover - 1 - on the handle - arrow -.






- Connect the (V.A.G 1348/3A) using the (V.A.G 1348/3-3) and cable from the (V.A.G 1594C) to the terminal - 1 -.






- Tape (V.A.G 1348/3-3) with insulating tape - arrow - to prevent a short circuit.

- Connect connector terminal - 5 - with an adapter cable from (V.A.G 1594C) to chassis Ground (GND).

- Route (V.A.G 1348/3A) toward front in engine compartment.

- Release the retainer - arrow A - and open the cover - arrow B -.






- Connect the alligator clip to the battery jump start terminal (U6) - A - in the terminal 30 wire junction 2 (TV22) in the plenum chamber.






- Open the fuel filler door.

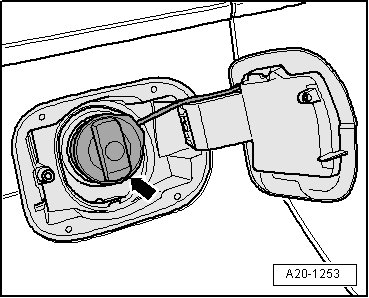

- Remove the fuel filler cap - arrow -.

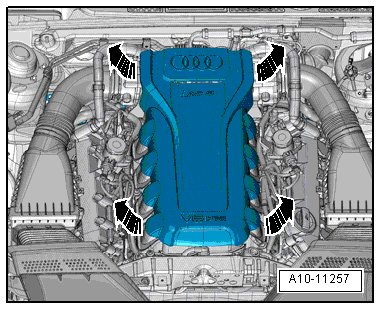

- Remove the engine cover - arrows -.














There is a risk of injury because the fuel is under high pressure.

To reduce pressure in fuel system, lay a clean cloth around the connector and carefully loosen connector.

- Disconnect the fuel line by first folding the boot - 1 - downward.

- First push the hose coupling - 2 - downward - arrow A -, then press the release buttons - arrow B -.

- Remove the hose coupling with the release buttons pressed.

- Connect the (VAS 6550) and hose (VAS 6550/2) to the fuel supply line.






- Connect the hose (VAS 6550/1) and hold it inside a fuel resistant container.









Risk of fuel leak.

Make sure that the drain - C - is closed.

The level is perpendicular to the direction of flow.

- Open the shut-off valves - A and B -.

The levers point in the direction of flow.

- Generate pressure in the fuel system by pressing the switch on the remote control and slowly closing the shut-off valve on the pressure gauge.

Specified value: 4 bar positive pressure.

- From this point on do not move position of shut-off valve.

- Empty measuring container.

- Press the remote control switch for 15 seconds.






- Compare quantity of fuel delivered with minimum delivery rate in diagram (cm3/15 s).

Voltage at fuel pump with engine stopped and pump running is approximate. 2 volts less than battery voltage.

If minimum delivery quantity is not obtained, the following malfunctions may be present:

The fuel lines are pinched.

The fuel filter is clogged.

The fuel pump is faulty.

Assemble in reverse order of disassembling. Note the following:

- Remove the (VAS 6550) with hoses (VAS 6550/1) and (VAS 6550/2).

- Attach the fuel line so that it clicks into place.

- Press the fuel line on again and pull to make sure the connection is engaged correctly.

- Install the right locking flange cover. Refer to => [ Locking Flange Cover - Tightening Specifications ] Fuel Tank With Attachments Overview.

- Install the rear bench seat.
