A/T - Harsh 2-3 Shift
37 Shift quality concerns: harsh 2-3 shift37 13 94
2033065/1
February 19, 2013
Vehicle Information
Condition
Shift quality concerns: harsh 2-3 shift.
Technical Background
Incorrect software calibration causes harsh shift points.
Production Solution
Not applicable.
Service
SVM Update Instructions

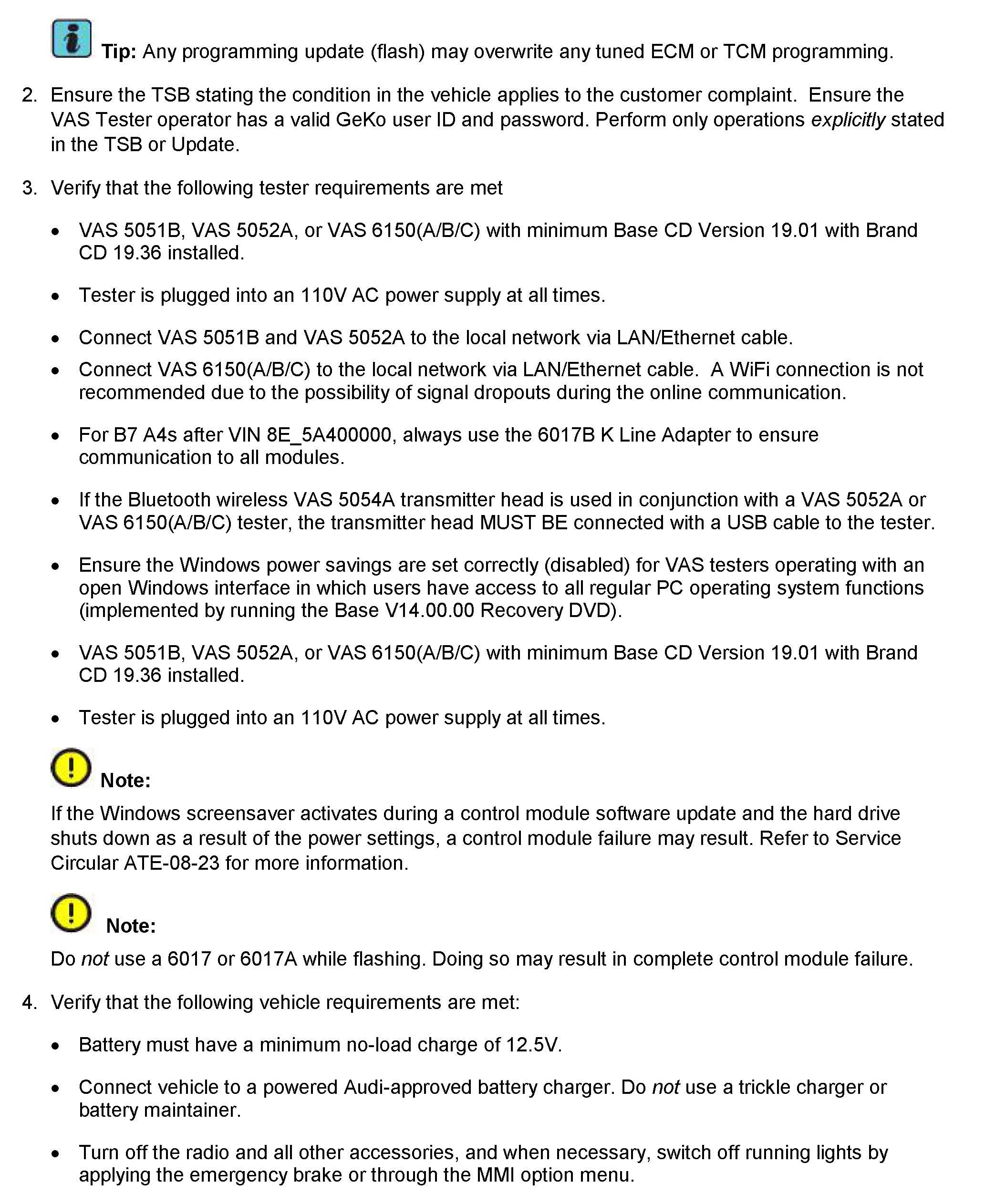

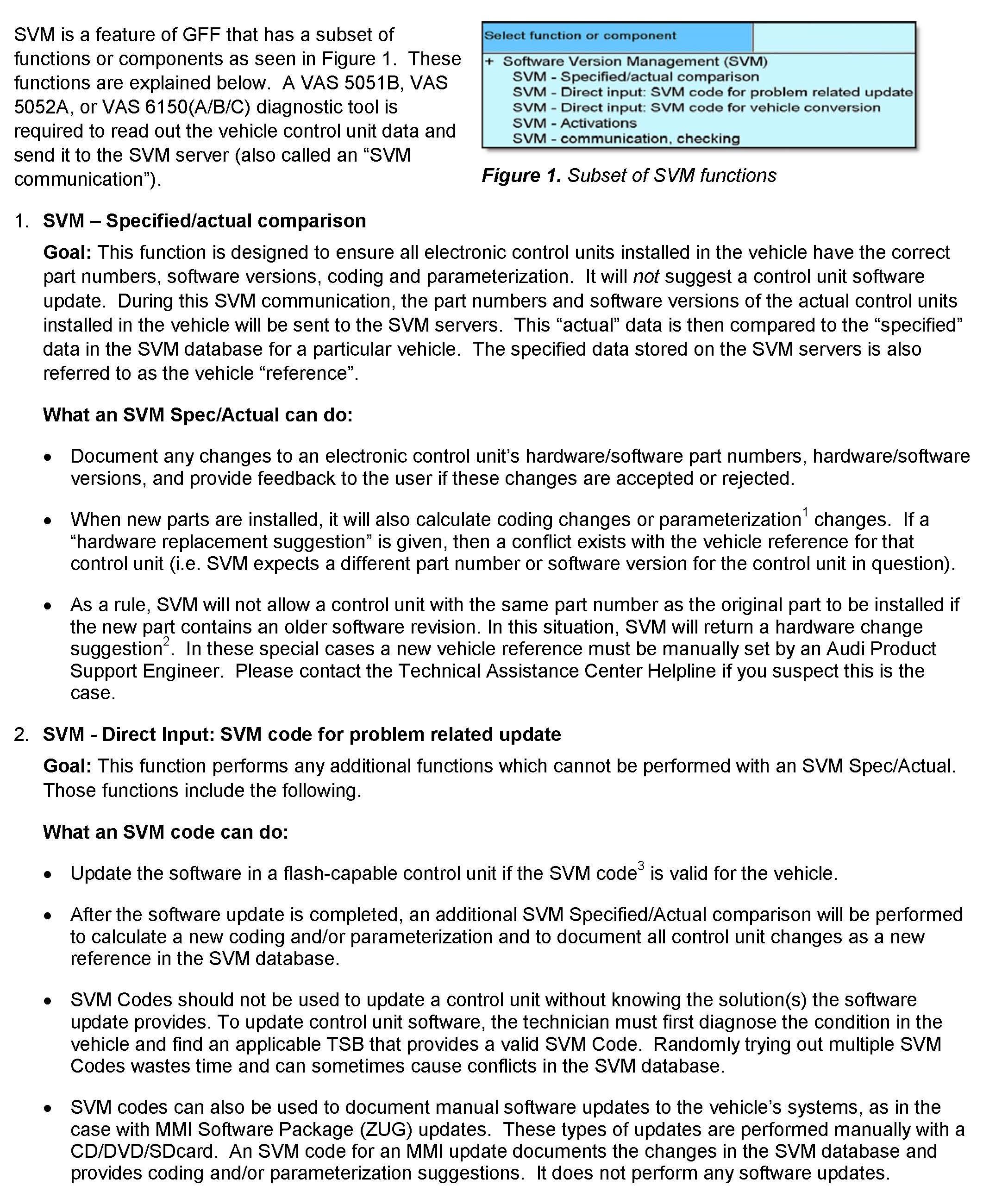

1. Follow all instructions in the attached TSB, 2011732 00 Software Version Management (SVM), operating instructions.
2. Update the transmission control module, J217 (02), using the SVM action code as listed in the table below if necessary.
3. Clear adaptations and perform test drive adaptation through GFF.
Warranty
All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.
Additional Information
The following Technical Service Bulletin will be necessary to complete this procedure:
^ TSB 2011732 00 Software Version Management (SVM), operating instructions.
All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.
