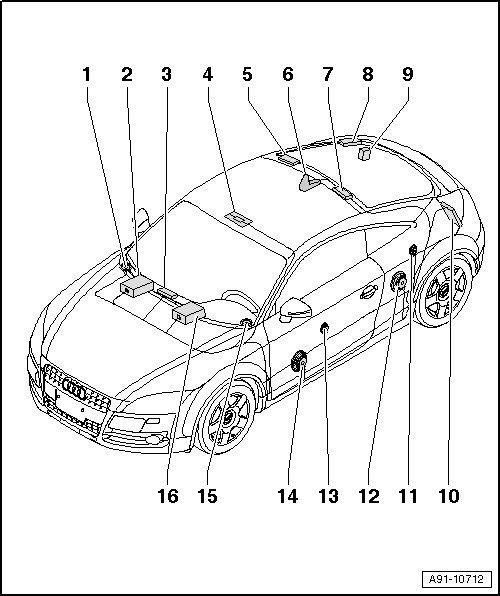

Coupe Component Locations, General Overview







Coupe Component Locations, General Overview






1 Right Front Treble Speaker (R22)

In right of instrument panel

Removing and installing, refer to => [ Left Front Treble Speaker ] Left Front Treble Speaker

2 CD Changer (R41)

In the glove compartment

Connectors, refer to => [ CD Changer Harness Connectors ] [1][2]CD Changer.

Removing and installing, refer to => [ CD Changer ] Service and Repair

- iPod Baseplate (R192)

In the glove compartment

Connectors, refer to => [ iPod Baseplate, Connections ] iPod Baseplate, Connections.

Removing and installing, refer to => [ iPod Baseplate ] Service and Repair

- External Audio Source Connection (R199)

Inside the glove compartment / center console

Connectors (connection for an external audio source), refer to => [ External Audio Source Connection Connectors, AMI ] External Audio Source Connection Connectors, AMI

AUX IN Connectors, refer to => [ AUX IN External Audio Source Connection Connectors ] AUX IN External Audio Source Connection Connectors.

Removing and installing (connection for an external audio source), refer to => [ AMI External Audio Source Connection ] Locations

AUX IN, Removing and Installing, refer to => [ AUX IN External Audio Source Connection ] AUX IN External Audio Source Connection.

3 Center Mid/High Range Loudspeaker (R158)

In front instrument panel, center

Removing and installing, refer to => [ Center Mid/High Range Speaker ] Center Mid/High Range Speaker

4 Microphone Unit In Front Roof Module (R164)

In Front Interior Light

Overview, refer to => [ Front Roof Module Microphone Unit Overview ] Front Roof Module Microphone Unit Overview

Removing and installing, refer to => [ Microphone Unit in Front Roof Module ] Microphone Unit In Front Roof Module

5 Antenna Amplifier (R24)

On upper right of rear lid

Overview, refer to => [ Antennas Overview ] Antennas Overview

6 Radio, Telephone, Navigation System Antenna (R52)

GPS/GSM

Overview, refer to => [ Antennas Overview ] Antennas Overview

7 Antenna Amplifier 4 (R113)

On upper left of rear lid

Overview, refer to => [ Antennas Overview ] Antennas Overview

8 Antenna Amplifier 2 (R111)

On lower right of rear lid

Overview, refer to => [ Antennas Overview ] Antennas Overview

9 not installed

10 Digital Sound System Control Module (J525)

Behind the luggage compartment left side trim

Connectors through MY 2008, refer to => [ Standard Sound System Connectors, Through MY 2008 ] Standard Sound System Connectors, Through MY 2008

Connectors from MY 2009, refer to => [ Standard Sound System Connectors, from MY 2009 ] Standard Sound System Connectors, From MY 2009

Removing and installing, refer to => [ Digital Sound System Control Module ] Digital Sound System Control Module

BOSE connections, refer to => [ BOSE Sound System Connectors ] BOSE Sound System Connectors

BOSE, removing and installing, refer to => [ Digital Sound System Control Module (BOSE) ] Digital Sound System Control Module (BOSE)

11 Left Rear Treble Speaker (R14)/Right Rear Treble Speaker (R16)

In upper right side trim

Removing and installing, refer to => [ Left Rear Treble Speaker ] Left Rear Treble Speaker

12 Left Rear Mid/Low Range Loudspeaker (R159)/Right Rear Mid/Low Range Loudspeaker (R160)

Behind rear side trim

Removing and installing, refer to => [ Left Rear Mid/Low Range Loudspeaker, Coupe ] Left Rear Mid/Low Range Loudspeaker, Coupe

13 Left Front Midrange Speaker (R103)/Right Front Midrange Speaker (R104)

In center of doors

Removing and installing, refer to => [ Left Front Midrange Speaker ] Left Front Midrange Speaker

14 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23)

In bottom of doors

Removing and installing, refer to => [ Left Front Bass Speaker ] Left Front Bass Speaker

15 Left Front Treble Speaker (R20)

In left of instrument panel

Removing and installing, refer to => [ Left Front Treble Speaker ] Left Front Treble Speaker

16 RNS-JP5 Connections/Antenna Connections

In the top of the center console

Connectors, refer to => [ Connectors and Connector Assignments ] Connectors and Connector Assignments.
