Diagram 29/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

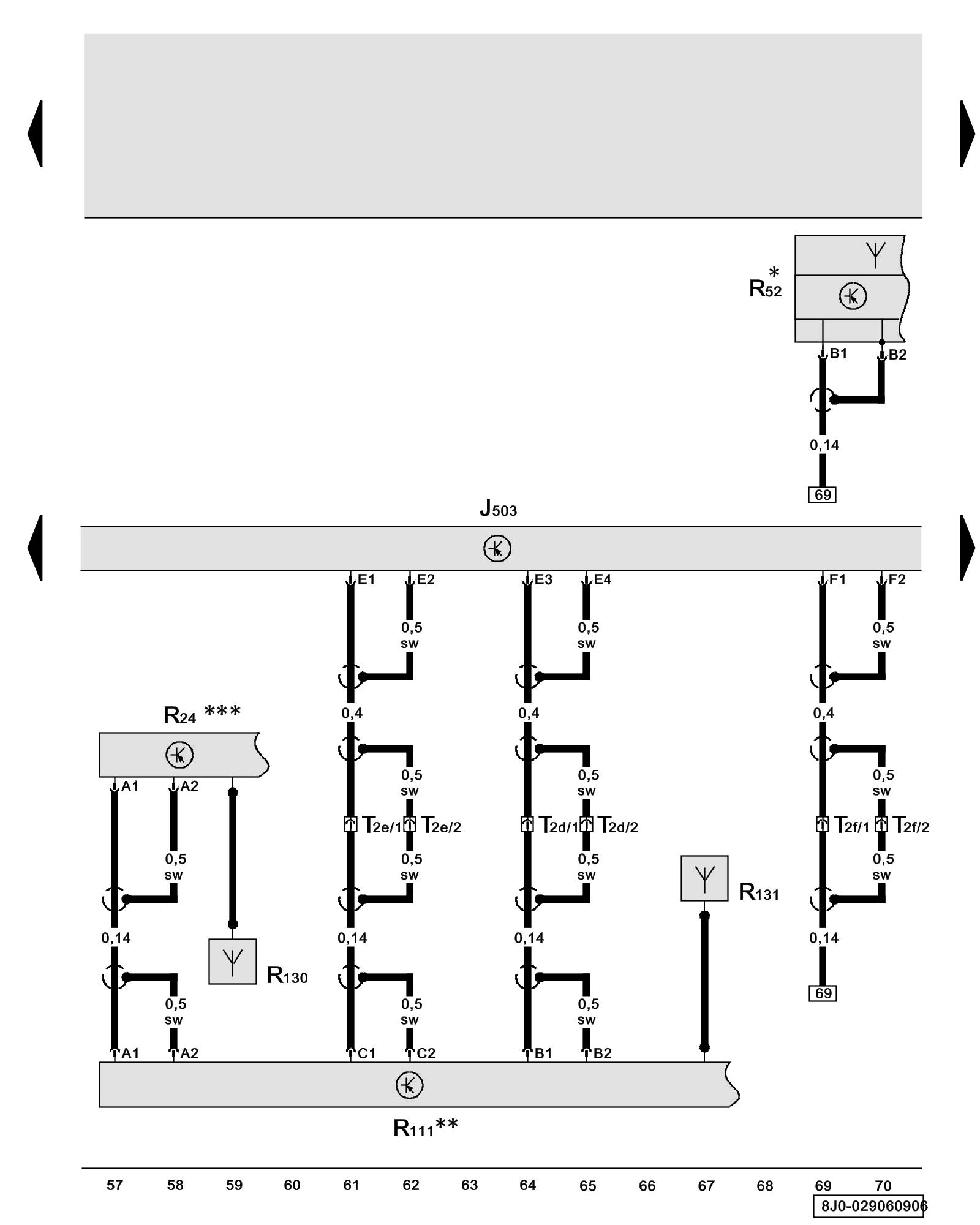

Coupe, Radio/Navigation Display Control Module, Antenna Amplifier, Rear Window Antenna, Antenna for Radio, Telephone, Navigation System





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module

R24 - Antenna Amplifier Rear Lid/ Roof Routing

R52 - Antenna for Radio, Telephone, Navigation System Rear Lid/ Roof Routing

R111 - Antenna Amplifier 2 Rear Lid/ Roof Routing

R130 - Rear Window Antenna 1 Locations

R131 - Rear Window Antenna 2

T2d - Double Connector, white, on rear right roof frame Overview of connector stations and pin connectors

T2e - Double Connector, yellow, on rear right roof frame Overview of connector stations and pin connectors

T2f - Double Connector, blue, on rear right roof frame Overview of connector stations and pin connectors

* - Roof Antenna

** - Lower right rear window

*** - Upper right rear window

Previous Diagram 29/5 (Tracks 43-56)

Next Diagram 29/7 (Tracks 71-84)
