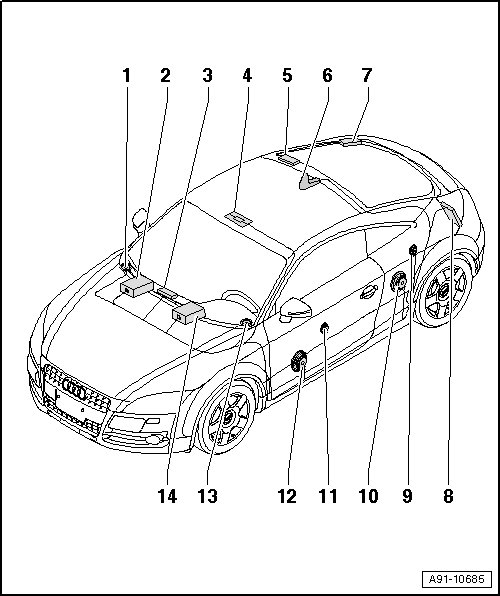

Coupe Component Locations, General Overview

Coupe Component Locations, General Overview






1 Left Front Treble Speaker (R20)

• In left of instrument panel

• Removing and installing, refer to => [ Left Front Treble Speaker ] Left Front Treble Speaker

2 CD Changer (R41)

• In the glove compartment

• Connectors, refer to => [ CD Changer Harness Connectors ] [1][2]CD Changer.

• Removing and installing, refer to => [ CD Changer ] Service and Repair

- iPod Baseplate

• In the glove compartment

• Connectors, refer to => [ iPod Baseplate, Connections ] iPod Baseplate, Connections.

• Removing and installing, refer to => [ iPod Baseplate ] Service and Repair

- External audio source connection

• Inside the glove compartment / center console

• Connectors (connection for an external audio source) refer to => [ External Audio Source Connection Connectors, AMI ] External Audio Source Connection Connectors, AMI

• AUX IN Connectors, refer to => [ AUX IN External Audio Source Connection Connectors ] AUX IN External Audio Source Connection Connectors.

• Removing and installing (connection for an external audio source), refer to => [ AMI External Audio Source Connection ] Locations

• AUX IN, Removing and Installing, refer to => [ AUX IN External Audio Source Connection ] AUX IN External Audio Source Connection.

3 Center Mid/High Range Loudspeaker (R158)

• In front instrument panel, center

• Removing and installing, refer to => [ Center Mid/High Range Speaker ] Center Mid/High Range Speaker

4 Microphone Unit In Front Roof Module (R164)

• In front interior light

• Overview, refer to => [ Front Roof Module Microphone Unit Overview ] Front Roof Module Microphone Unit Overview

• Removing and installing, refer to => [ Microphone Unit in Front Roof Module ] Microphone Unit In Front Roof Module

5 Antenna Amplifier (R24)

• On upper right of rear lid

• Overview, refer to => [ Antennas Overview ] Antennas Overview

6 Radio, Telephone, Navigation System Antenna (R52)

• Overview, refer to => [ Antennas Overview ] Antennas Overview

7 Antenna Amplifier 2 (R111)

• On lower right of rear lid

• Overview, refer to => [ Antennas Overview ] Antennas Overview

8 Digital Sound System Control Module (J525)

• Behind the luggage compartment left side trim

• Connectors through MY 2008, refer to => [ Standard Sound System Connectors, Through MY 2008 ] Standard Sound System Connectors, Through MY 2008

• Connectors from MY 2009, refer to => [ Standard Sound System Connectors, from MY 2009 ] Standard Sound System Connectors, From MY 2009

• Removing and installing, refer to => [ Digital Sound System Control Module ] Digital Sound System Control Module

• BOSE connections, refer to => [ BOSE Sound System Connectors ] BOSE Sound System Connectors

• BOSE, removing and installing, refer to => [ Digital Sound System Control Module (BOSE) ] Digital Sound System Control Module (BOSE)

9 Left Rear Treble Speaker (R14)/Right Rear Treble Speaker (R16)

• In upper right side trim

• Removing and installing, refer to => [ Left Rear Treble Speaker ] Left Rear Treble Speaker

10 Left Rear Mid/Low Range Loudspeaker (R159)/Right Rear Mid/Low Range Loudspeaker (R160)

• Behind rear side trim

• Removing and installing, refer to => [ Left Rear Mid/Low Range Loudspeaker, Coupe ] Left Rear Mid/Low Range Loudspeaker, Coupe

11 Left Front Midrange Speaker (R103)/Right Front Midrange Speaker (R104)

• In center of doors

• Removing and installing, refer to => [ Left Front Midrange Speaker ] Left Front Midrange Speaker

12 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23)

• In bottom of doors

• Removing and installing, refer to => [ Left Front Bass Speaker ] Left Front Bass Speaker

13 Right Front Treble Speaker (R22)

• In right of instrument panel

• Removing and installing, refer to => [ Left Front Treble Speaker ] Left Front Treble Speaker

14 Radio/Navigation Display Control Module (J503)

• In the top of the center console

• Connectors, refer to => [ Radio/Navigation Display Control Module, Connections ] Radio/Navigation Display Control Module, Connections.

• Removing and installing, refer to => [ Radio/Navigation Display Control Module ] Service and Repair
