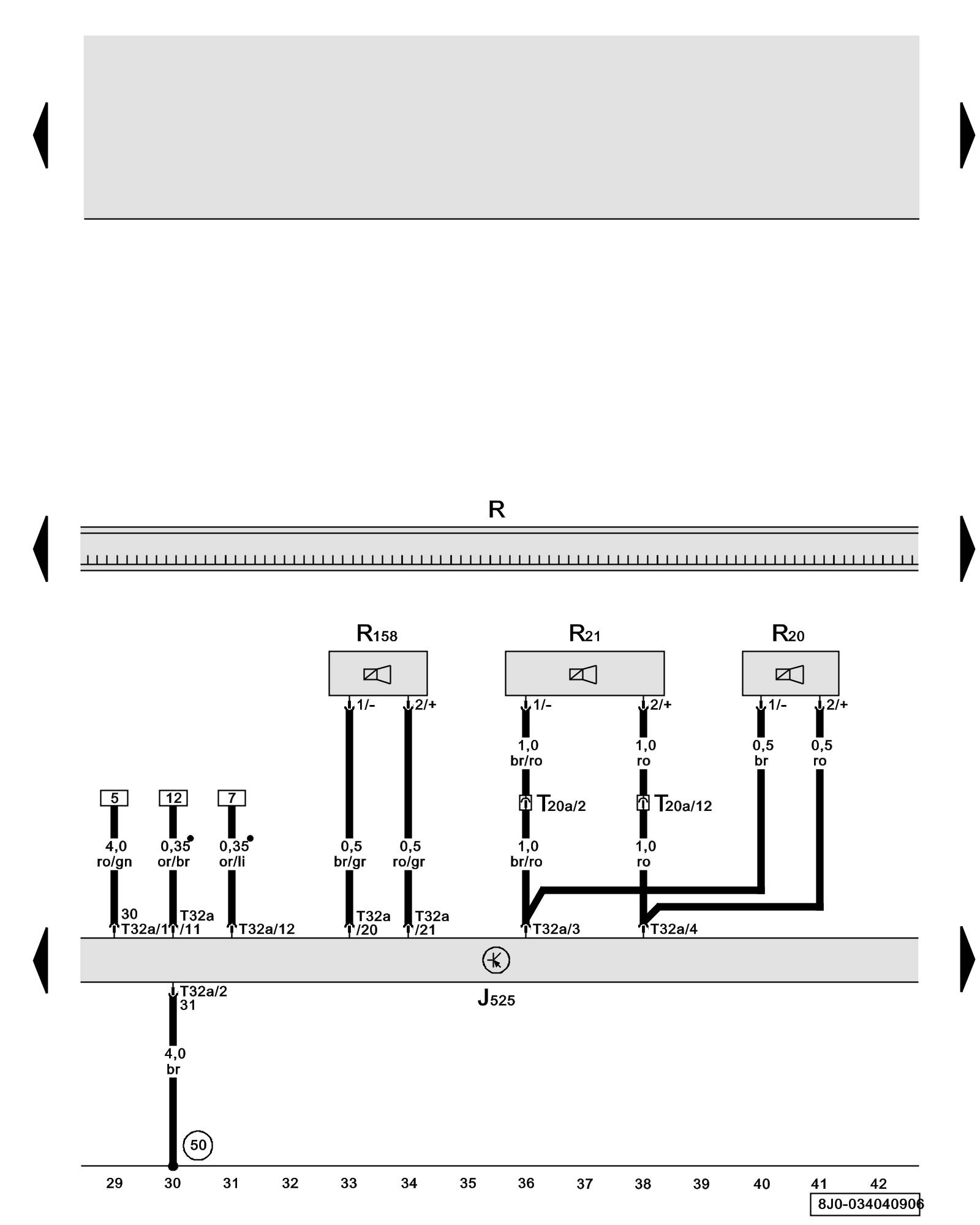

Diagram 34/4 (Tracks 29-42)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Digital Sound System Control Module, Left Front Treble Speaker, Left Front Bass Speaker, Center Midrange Speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital Sound System Control Module Component Locations

R - Radio Instrument Panel Wiring Harness Routing

R20 - Left Front Treble Speaker Instrument Panel Wiring Harness Routing

R21 - Left Front Bass Speaker Door Routing

R158 - Center Midrange Speaker Instrument Panel Wiring Harness Routing

T20a - 20-Pin Connector, black, on front left door Door Routing

T32a - 32-Pin Connector, black, on digital sound system control module

(50) - Ground Connection (in luggage compartment, left) Locations

^ - CAN-Bus (data wire)
