Central Tube Assembly Overview
Central Tube Assembly Overview

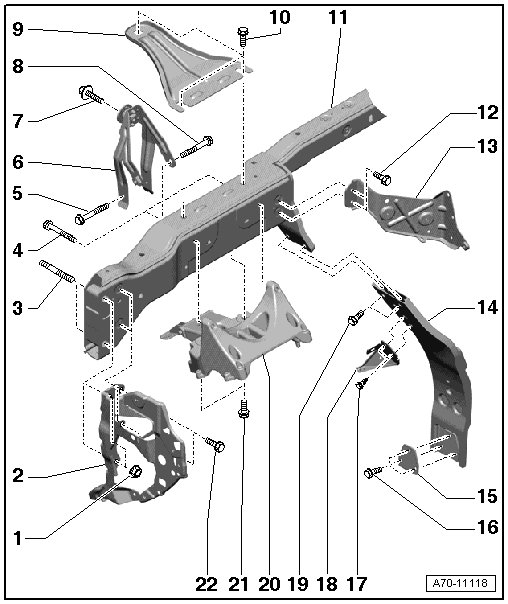

Part 1 (Driver Side)
1 Nut
• Quantity: 2
• Replacing
• 20 Nm
2 Instrument panel bracket
3 Threaded pin
• 23 Nm
4 Bolt
• Quantity: 2
• 20 Nm
5 Bolt
6 Lower brace
• with balancing element
7 Bolt
• 20 Nm
8 Bolt
9 Upper brace
10 Bolt
• Quantity: 3
• 20 Nm
11 Central Tube
• Removing and Installing, refer to => [ Central Tube ] Central Tube
12 Bolt
• Quantity: 2
• 9 Nm
13 Left center section bracket
14 Left support
15 Intermediate plate
16 Bolt
• Quantity: 3
• 9 Nm
17 Bolt
• Quantity: 2
• 3.5 Nm
18 Driver side instrument panel cover mounting bracket
19 Bolt
• Quantity: 2
• 9 Nm
20 Steering column mounting bracket
21 Bolt
• Quantity: 2
• 20 Nm
22 Bolt
• Quantity: 2
• 9 Nm

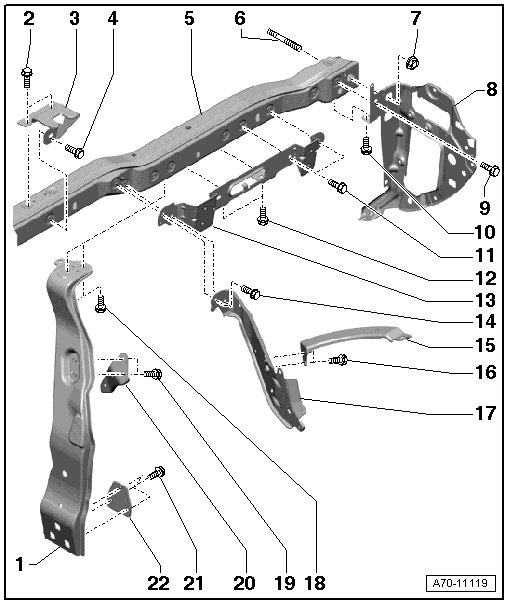

Part 2 (Passenger Side)
1 Right support
2 Bolt
• Quantity: 2
• 9 Nm
3 Centering bracket
• with plastic bearing
4 Bolt
• 9 Nm
5 Central Tube
• Removing and Installing, refer to => [ Central Tube ] Central Tube
6 Threaded pin
• 23 Nm
7 Nut
• Replacing
• 20 Nm
8 Instrument panel bracket
9 Bolt
• 9 Nm
10 Bolt
• 9 Nm
11 Bolt
• Quantity: 2
• 9 Nm
12 Bolt
• Quantity: 2
• 9 Nm
13 Support for the front passenger airbag unit
14 Bolt
• Quantity: 2
• 9 Nm
15 Instrument panel support
16 Bolt
• Quantity: 2
• 3.5 Nm
17 Right center section bracket
18 Bolt
• Quantity: 2
• 9 Nm
19 Bolt
• Quantity: 2
• 3.5 Nm
20 Glove compartment bracket
21 Bolt
• Quantity: 3
• 9 Nm
22 Intermediate plate

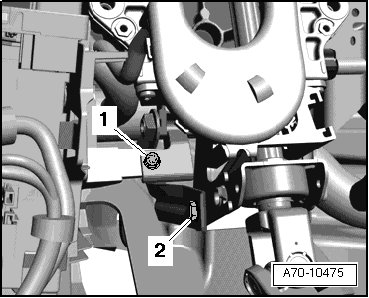

Cable guide to central tube
- 1 - 4.5 Nm
Left Relay and Fuse Carrier Mounting Frame to Central Tube
- 1 - 4.5 Nm

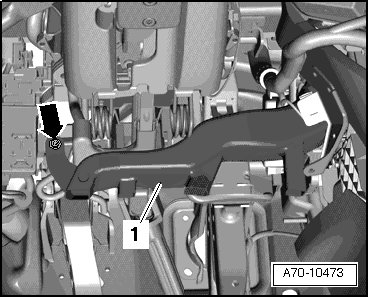

Air Duct to Central Tube

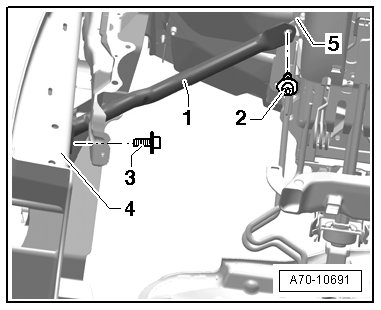

Brace between A-Pillar and Mounting Bracket/Steering Column, Roadster
1. Brace
2. Bolt - 9 Nm
3. Bolt - 9 Nm
4. A-pillar
5. Steering column mounting bracket

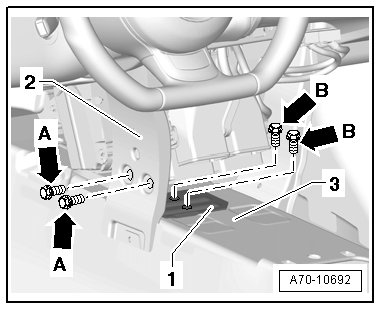

Reinforcement, Tunnel Support, Roadster
1. Tunnel support reinforcement
2. Left support
3. Front tunnel
- Arrow A - bolts (M6, 20 mm long) - 9 Nm
- Arrow B - bolts (M6, 12 mm long) - 9 Nm
