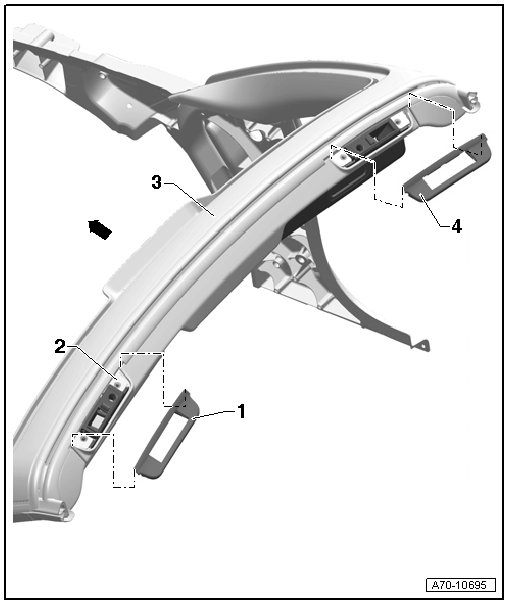

End Plate Cover Assembly Overview

End Plate Cover Assembly Overview

• The - arrow - points to the direction of travel.

• To remove and install end plate cover, convertible top must be open.






1 Left end plate cover

• Removing: can be removed from end plate by hand

• Installing: clip into the windshield frame

2 End plate

• For convertible top

3 Windshield frame

4 Right end plate cover

• Removing: can be removed from end plate by hand

• Installing: clip into the windshield frame
