Central Locking Component Overview

Central Locking Component Overview

• Central locking functions electronically.

• Actuators in doors are integrated in the door lock and have 2 motors.

• Actuators cannot be replaced separately.

• The first motor locks the door and the second motor locks the interior door mechanism (Safe function).

• Now, doors also can no longer be opened from the interior.

• After an accident in which the airbag deploys, the central locking system control module opens any doors which were locked.

• The central locking control module is located inside the right rear side panel.

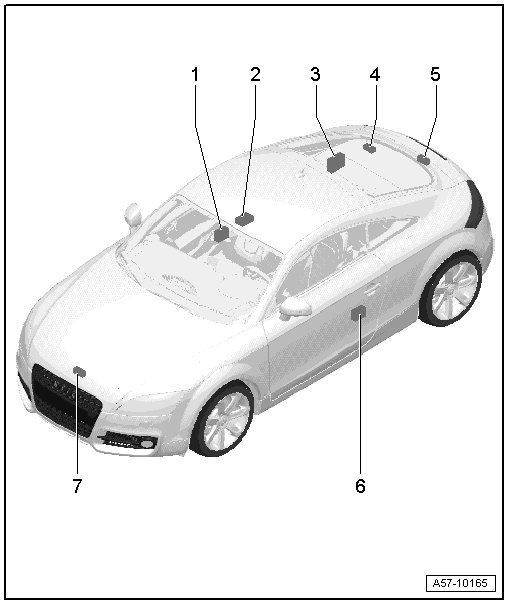

1 Front passenger door control module (J387)

2 Anti-Theft Alarm System Sensor (G578)

3 Comfort system central control module (J393)

4 Fuel filler door unlock motor (V155)

• Removing and Installing, refer to => [ Fuel Filler Door Unlock Motor V155 ] Fuel Filler Door Unlock Motor V155

5 Motor for rear lid release (V139)

6 Driver door control module (J386)

7 Engine hood contact switch (F266)

• Removing and Installing, refer to => [ Hood Switch F266 ] Hood Switch F266
