Fuel Filler Door Unlock Motor V155

Fuel Filler Door Unlock Motor V155

• Central locking functions electronically.

• Actuators in doors are integrated in the door lock and have 2 motors.

• Actuators cannot be replaced separately.

• The first motor locks the door and the second motor locks the interior door mechanism (Safe function).

• Now, doors also can no longer be opened from the interior.

• After an accident in which the airbag deploys, the central locking system control module opens any doors which were locked.

• The central locking control module is located inside the right rear side panel.

Special tools, testers and auxiliary items required

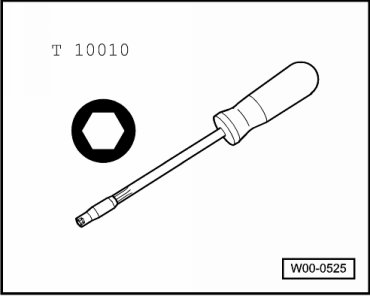

• Socket wrench (T10010).

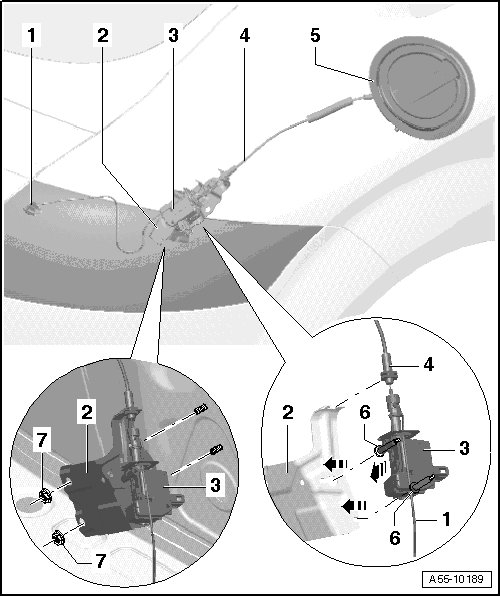

Assembly Overview






1 Emergency release

2 Bracket

3 Fuel filler door unlock motor (V 155)

• Installing

4 Fuel Filler Door Release Cable

5 Fuel filler door

• Removing=> [ Fuel Filler Door ] Fuel Filler Door

6 Bolt

• With bracket - 2 - installed, loosen bolts clockwise using Socket Wrench (T10010).

• 2 Nm

7 Nut

• 9 Nm

Fuel filler door emergency release cable routing






1 Emergency release motor

2 Emergency release clip

• Press into emergency release bracket.

3 Emergency release bracket

Fuel Filler Door Unlock Motor, Installing

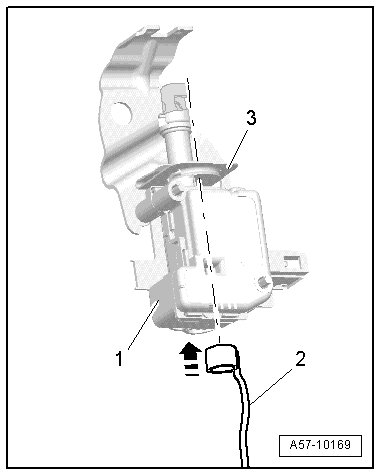

- Insert emergency release clip - 2 - in motor - 1 -.

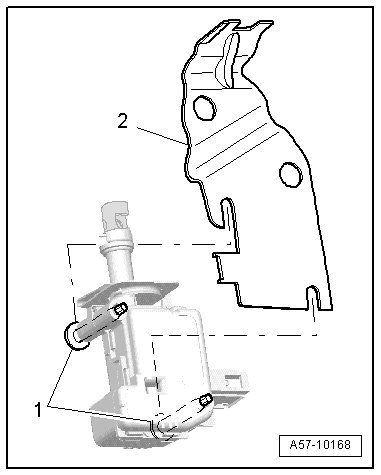

- Insert motor in bracket - 2 - and tighten with bolts - 1 -.






- Guide emergency release - 2 - through clip - 3 - on motor - 1 -.






- Connect emergency release - 2 - to cable - 3 -.

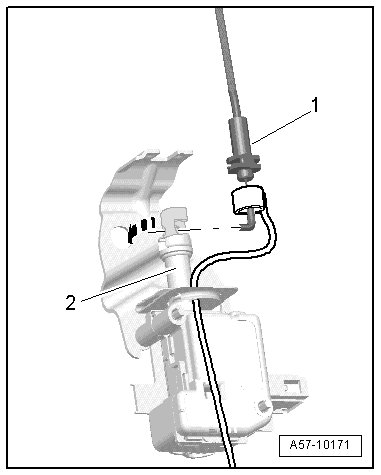

- Insert cable - 1 - in operating rod - 2 - and turn until it engages audibly.






- Slide emergency release cap - 3 - onto operating rod and press cable bracket - 2 - into bracket mount - arrow -.

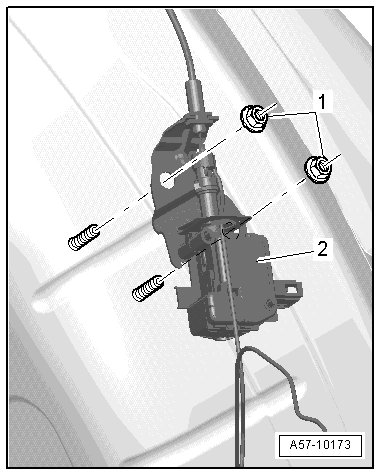

- Secure assembly - 2 - in upper wheel housing with nuts - 1 -.
