Convertible Top Latch Height Adjustment

Convertible Top Latch Height Adjustment






1 Release cable

2 Convertible top latch

• The convertible top latch must be adjusted so top is 4 mm below front convertible top compartment trim.

3 Markings

• To adjust height, adjust latch according to markings.

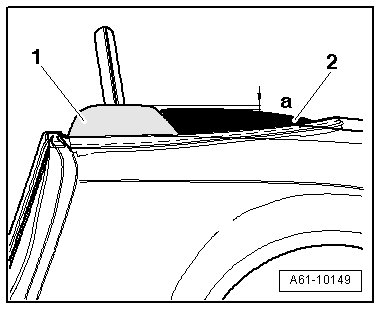

Front rail height adjustment






- When convertible top is adjusted correctly, front rail must engage with dimension - a - = 4 mm in center of vehicle under front convertible top compartment trim.
