Convertible Top Seals

Convertible Top Seals






1 Washers

• May be used if necessary for side adjustment of seals.

2 Bolt

• 3 Nm

3 Rear guide hinge

4 Rear seal

5 Center roof guide seal 2

6 Front roof guide seal 1

7 Center guide rail for roof guide 2

8 Front guide rail for roof guide 1

Seal, Removing






- Seals are slid into guide rails.

- To remove, remove from guide rails.

- For easier assembly, coat seal - 1 - with soapy solution if necessary and slide onto seal guide - 2 -.

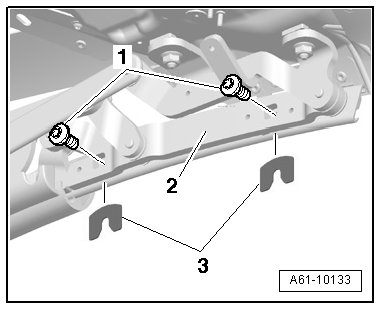

Seal, Adjusting






- For side adjustment, slide in shims - 3 - between guide rails and convertible top guide - 2 - appropriate to the door window.

- Tighten bolts - 1 - on guide rails to the specification.
