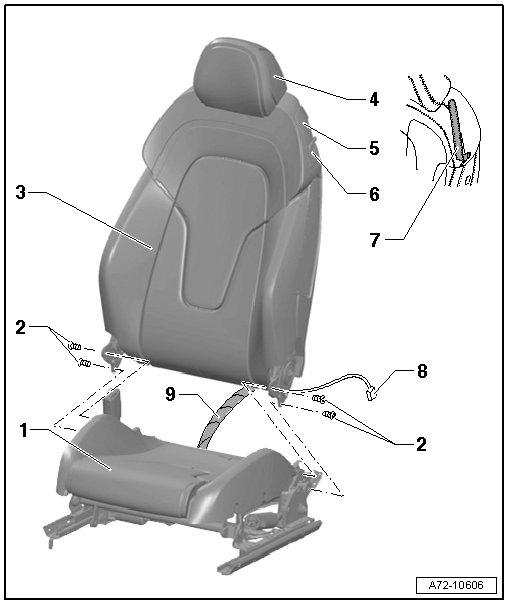

Front Backrest Assembly Overview

Front Backrest Assembly Overview






1 Seat pan

2 Screw, self-locking

• 35 Nm

• Quantity: 4

• Replacing

• Threaded holes for screws must always be cleaned (for example, with thread cutter)

3 Front backrest

• Removing and Installing, refer to => [ Front Backrest ] Front Backrest

4 Headrest

• Removing and Installing, refer to => [ Headrests with Locking Mechanism ] Headrests with Locking Mechanism

5 Trim

• With entry assist

• Removing and Installing, refer to => [ Entry Assistance Assembly Overview, Coupe Only ] Entry Assistance Assembly Overview, Coupe Only

• Coupe only

6 Handle

• With entry assist

• Removing and Installing, refer to => [ Entry Assistance Assembly Overview, Coupe Only ] Entry Assistance Assembly Overview, Coupe Only

• Coupe only

7 Retaining loop with push button

• For seat belt

• Roadster only

8 Wiring

• For side airbag

9 Wiring harness

Cable Clip to Seat Pan






- 1 - - 3.5 Nm
