Storage Compartment, Disassembling and Assembling

Storage Compartment, Disassembling and Assembling

• The seat must not be removed to disassemble and assemble storage compartment.

• The storage compartment can be assembled and disassembled when installed.

• It is necessary to remove the front seat and the storage compartment in order to replace the outer part => [ (Item 7) Outer part ] Storage Compartment Individual Components Assembly Overview.

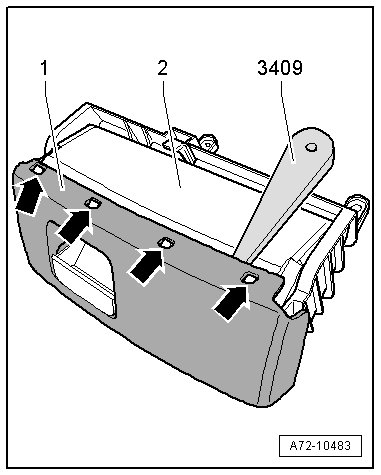

Trim, Removing






- Remove the inner part from the outer part.

- Using the trim removal wedge (3409) , unclip the trim - 1 - from the retaining tabs - arrows - (quantity: 4) on the inner part - 2 -.

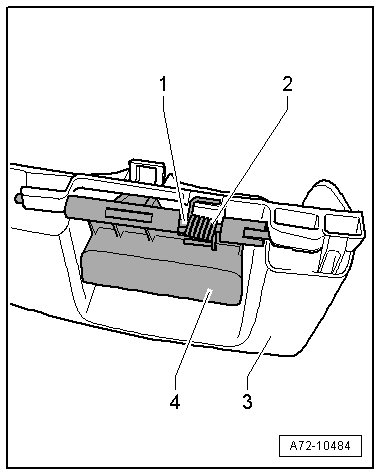

Handle with Locking Mechanism, Removing






- Remove trim.

- Remove axle - 1 - from inner part - 3 -.

- Remove handle with locking mechanism - 4 -, torsion spring - 2 - and axle - 1 -.

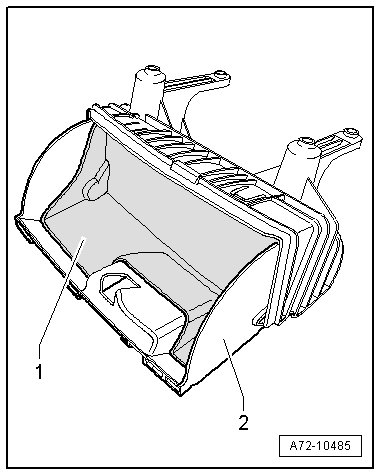

Insert, Removing






• The insert is placed in the inner part and is not secured by any additional means.

• For overview purposes, the storage compartment is shown removed and without trim and release handle in the following illustrations.

- Open storage compartment.

- Remove insert - 1 - from inner part - 2 -.

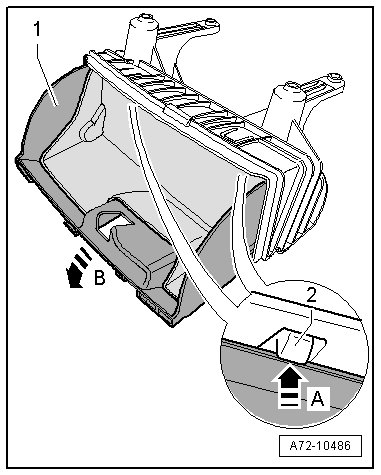

Inner Part, Removing from Outer Part






- Open storage compartment.

- Press retainers - 2 - (quantity: 2) upward in direction of - arrow A -.

- Tip inner part - 1 - down in direction of - arrow B -.

- Remove outer part - 1 - from guide - arrow - on inner part - 2 -.






Storage Compartment, Assembling






Assembling is reverse of removal, noting the following:

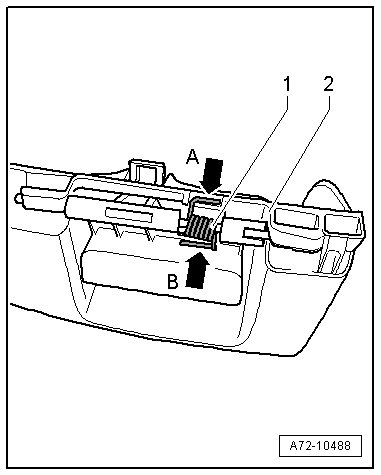

- Engage the torsion spring - 1 - so that the shorter side - arrow A - is supported on the inner part - 2 - and the longer side - arrow B - is supported on the handle.
