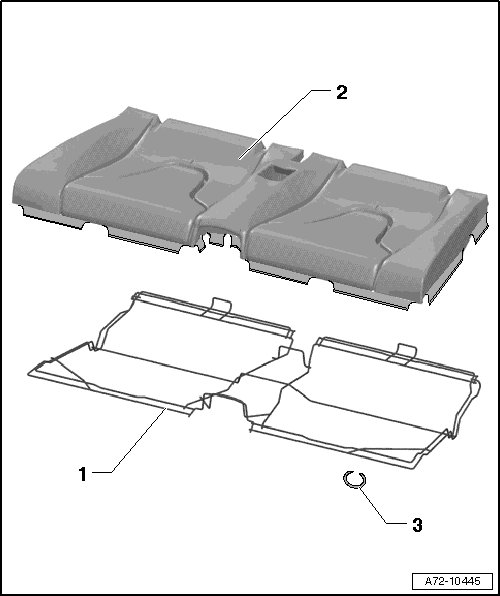

Seat Frame Assembly Overview

Seat Frame Assembly Overview






1 Seat frame

• Removing and Installing, refer to => [ Seat Frame ] Seat Frame

2 Cover with upholstery

• Do not separate from one another when removing seat frame

3 Cushion clamp

• Quantity: 48

• Replacing

• Install in same location as before removal

Ends of upholstery clips must face in direction of upholstery after installing and must be bent correctly. Otherwise, there is a risk of injury.
