Diagram 16/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

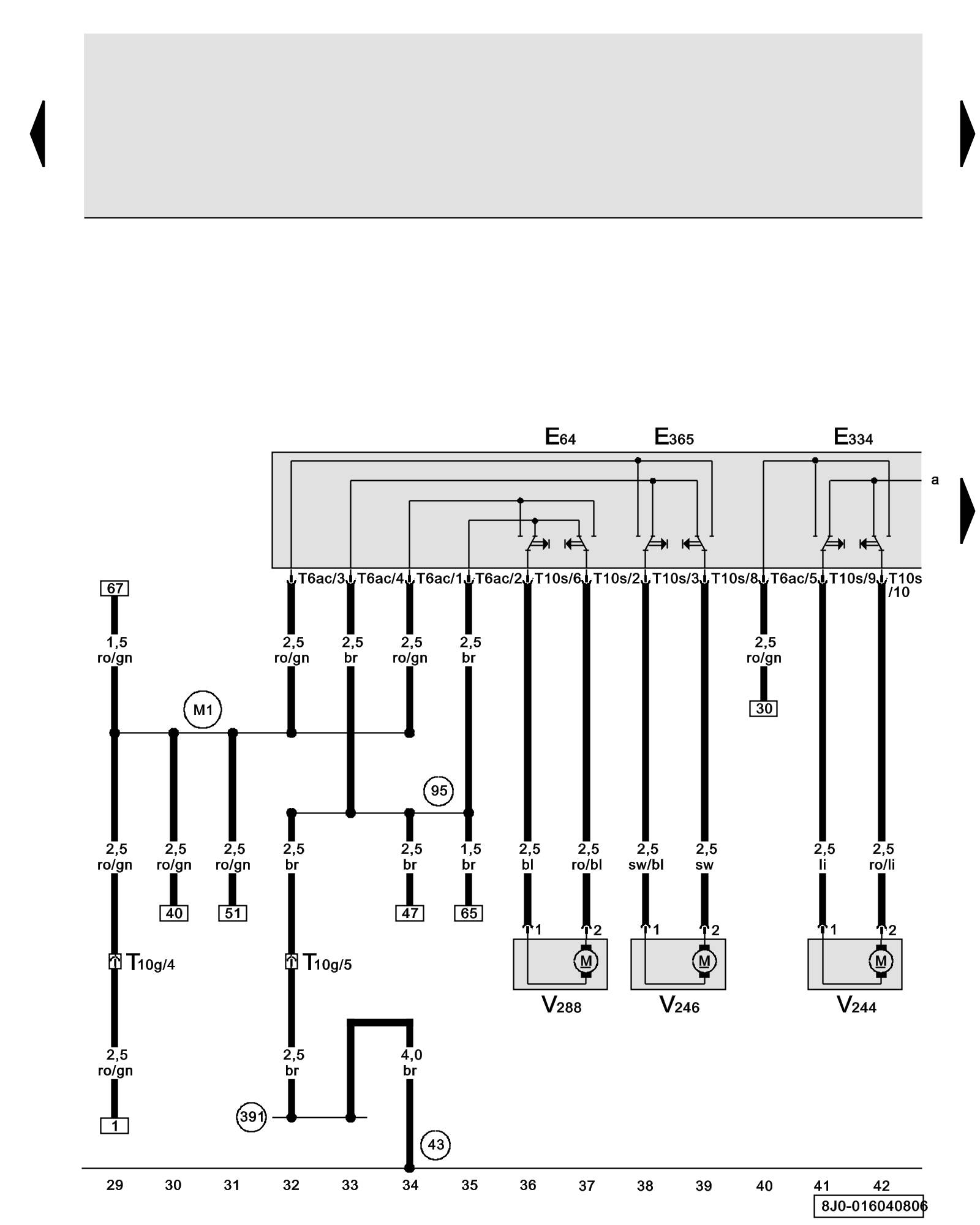

Front Passenger's Seat Adjustment Switch, Front Passenger's Seat Adjustment Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E64 - Front Passenger's Seat Fore/Aft Adjustment Switch Locations

E334 - Front Passenger's Seat Tilt Adjustment Button Locations

E365 - Front Passenger's Seat Height Adjustment Switch Locations

T6ac - 6-Pin Connector, on seat adjustment switch

T10g - 10-Pin Connector, red, below front passenger's seat Overview of connector stations and pin connectors

T10s - 10-Pin Connector, on seat adjustment switch

V244 - Front Passenger's Seat Inclination Adjustment Motor Locations

V246 - Front Passenger's Seat Height Adjustment Motor Locations

V288 - Seat Fore/Aft Adjustment Motor Locations

(43) - Ground Connection (on right lower A-pillar) Locations

(95) - Ground Connection 1 (in power seat wiring harness)

(391) - Ground Connection 26 (in main wiring harness)

(M1) - Plus Connection 1 (30) (in power seats wiring harness)
