Diagram 15/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


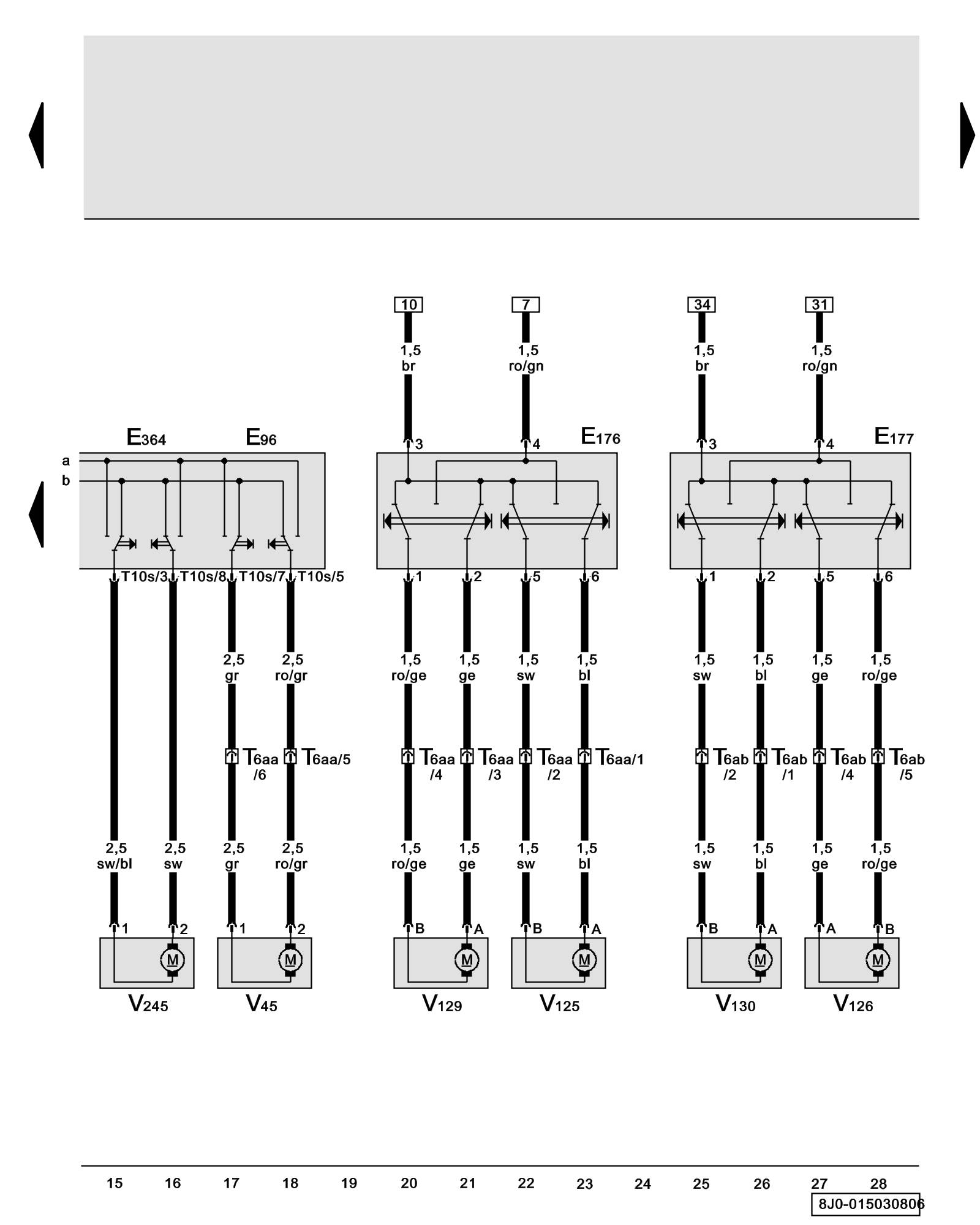

Driver's Backrest Adjustment Switch, Driver's Seat Height Adjustment Switch, Lumbar Support Adjustment Switch, Lumbar Support Fore/Aft Adjustment Motor, Lumbar Support Height Adjustment Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E96 - Driver's Backrest Adjustment Switch Locations

E176 - Driver's Seat Lumbar Support Adjustment Switch Locations

E177 - Front Passenger's Seat Lumbar Support Adjustment Switch Locations

E364 - Driver's Seat Height Adjustment Switch Locations

T6aa - 6-Pin Connector, in driver seat

T6ab - 6-Pin Connector, in front passenger's seat

T10s - 10-Pin Connector, on seat adjustment switch

V45 - Driver's Backrest Adjustment Motor Locations

V125 - Driver's Seat Lumbar Support Curvature Adjustment Motor Locations

V126 - Front Passenger's Seat Lumbar Support Curvature Adjustment Motor Locations

V129 - Driver's Seat Lumbar Support Height Adjustment Motor Locations

V130 - Front Passenger Seat Lumbar Support Height Adjustment Motor Locations

V245 - Driver's Seat Height Adjustment Motor Locations
