Backrest

Backrest

• The left 1/2 and right 1/2 backrests can only be removed and installed together in the vehicle.

Removing

- Fold the front seat backrest forward as far as possible.

- Move the front seats forward as far as possible.

- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat.

- Remove the luggage compartment floor covering.

- Remove left and right side trim. Refer to => [ Rear Side Trim ] Rear Side Trim.

- Release 1/2 left and 1/2 right backrests and fold them forward.

Do not kneel or support on folded backrest.

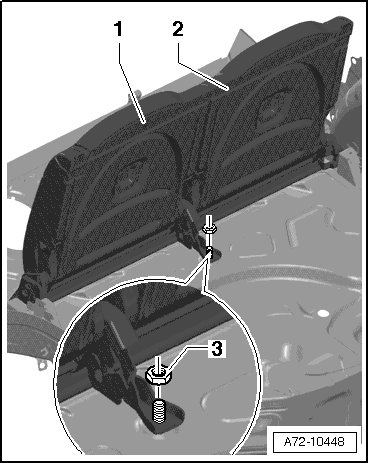

- Remove nut - 3 -.






1. Left 1/2 backrest

2. 1/2 right backrest

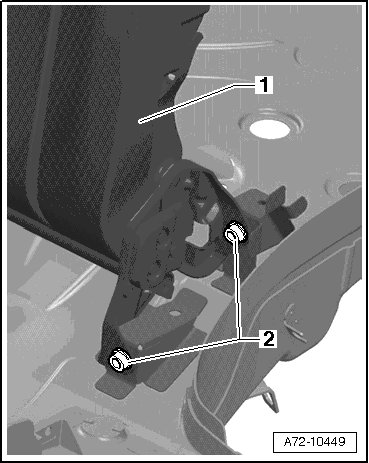

- Remove bolts - 2 - (quantity: 4).






1. Left 1/2 backrest


- Fold 1/2 left and 1/2 right backrests back into normal position.

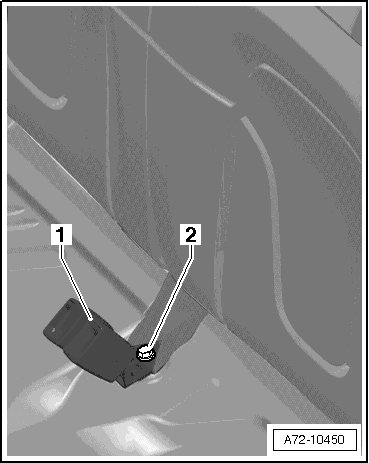

- Remove the bolt - 2 -.






- Remove seat belt latch - 1 -.

- Remove 1/2 left and 1/2 right backrests from vehicle together.

Installation

Do not kneel or support on folded backrest.

• When installing left and right 1/2 backrest, follow threaded connection installation sequence.

- Lift the 1/2 left and 1/2 right backrest into the vehicle.

- Install the seat belt latch - 1 - and tighten the screw and nut - 2 - hand-tight.

- Install bolts - 2 - (quantity: 4) and tighten to the specification.






- Install nut - 3 - and tighten to the specification.






- Tighten the screw and nut - 2 - to the tightening specification.






Further installation is performed in the reverse order of removal.

For the correct tightening specifications, refer to => [ 1/2 Left and Right Backrest Assembly Overview ] 1/2 Left and Right Backrest Assembly Overview
