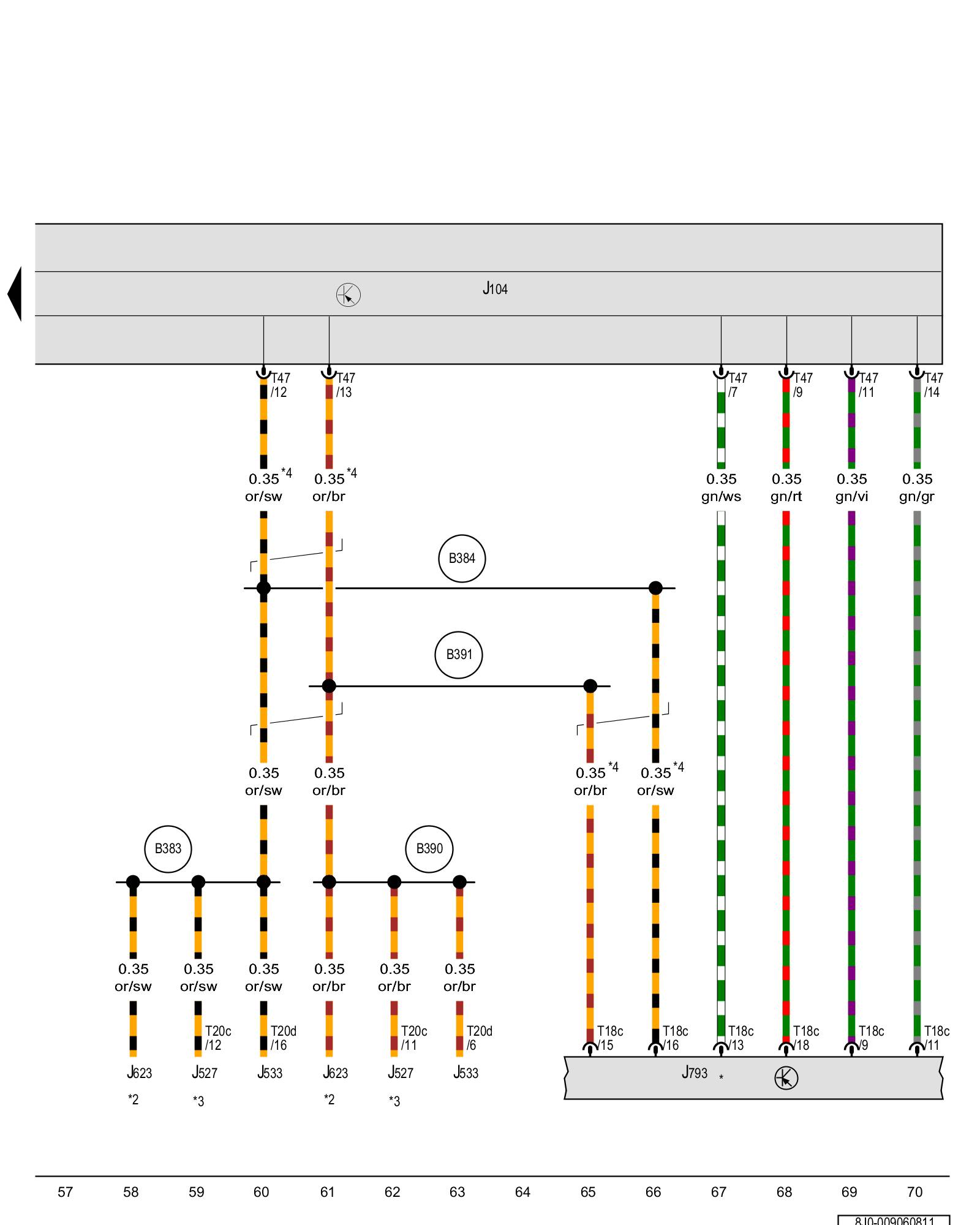

Diagram 9/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


ABS control module, Tire pressure monitoring control module 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS control module Component Locations

J527 - Steering column electronics control module Component Locations

J533 - Data bus on board diagnostic interface Component Locations

J623 - Engine control module Component Locations

J793 - Tire pressure monitoring control module 2 Component Locations

T18c - 18-pin connector Locations

T20c - 20-pin connector Locations

T20d - 20-pin connector Locations

T47 - 47-pin connector Locations Locations

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B384) - Powertrain CAN bus high connection 2 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B391) - Powertrain CAN bus low connection 2 (in main wiring harness)

* - Only for vehicles with tire pressure monitoring

*2 - Refer to applicable engine wiring diagram

*3 - Through June 2009

*4 - Data bus wire (CAN bus)
