Amplifier 2 Connections

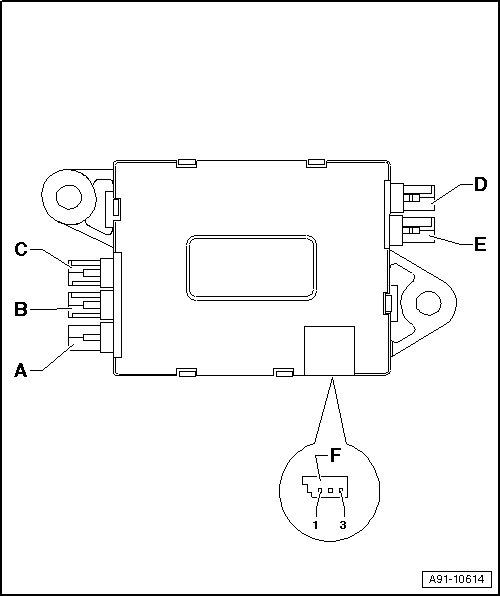

Antenna Amplifier 2 Connections






A - FM2/ZF connection (yellow) to Radio (R)/Navigation System with CD Drive Control Module (J401)/Radio/Navigation Display Control Module (J503)

B - AM/FM1 connection (black) from the Antenna Amplifier (R24) (only with the radio/navigation system)

C - HF connection (white) to Navigation System with CD Drive Control Module (J401)/Radio/Navigation Display Unit Control Module (J503)

D - TV1 connection (brown) to TV Tuner (R78)

E - TV2 connection (green) to TV Tuner (R78)

F - Connection for window antennas

1 - FM2/TV1

2 - Ground (GND)

3 - FM3/TV2
