Radio, Harness Connectors

Radio, Harness Connectors

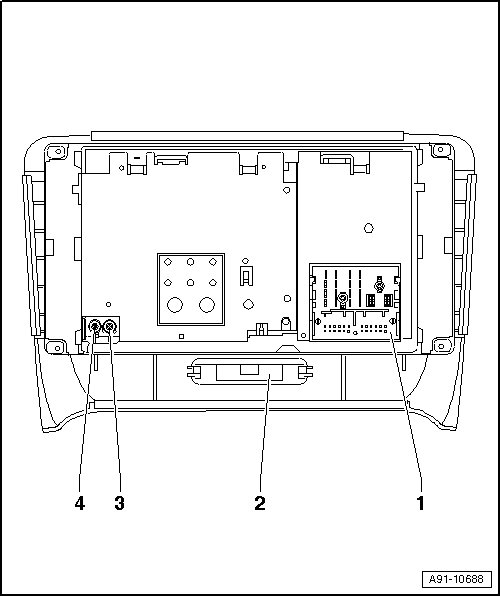

1 Connection Block With Four Multi-Pin Connectors And A Fuse For Unit

2 Front Passenger's Airbag Disabled Indicator Lamp (K145)

3 AM/FM1 Connection (White) From Antenna Amplifier (R24)

4 FM2 (white) Connection From Antenna Amplifier 2 (R111)

• Unlisted connector terminals are not assigned.

A - 8-pin Multi-pin Connector (T8b) Brown





2 Right front speaker (+) (only on base sound system)
3 Left front speaker (+) (only on base sound system)
6 Right front speaker (-) (only on base sound system)
7 Left front speaker (-) (only on base sound system)

B - Multi-pin Connector, 12-pin (T12f) Blue





1 Left LF-In from the external audio source connection
2 Signal ground to CD changer/satellite radio
3 LF-In ground from the external audio source connection
4 Permanent positive to CD changer
5 BOSE coding to ground (only with BOSE)
6 Data out to the CD changer
7 Right LF-In from the external audio source connection
8 Left signal from CD changer/satellite radio
9 Right signal from CD changer/satellite radio
10 Positive switched to CD changer
11 Data in from the CD changer
12 CLK from the CD changer

C - Green 12-pin Multi-pin Connector (T12g)





1 Speed signal (not used)
3 Left front signal to digital sound system control module
5 Left rear signal to digital sound system control module
6 LF (-) from telephone transceiver
7 K diagnostic (not used)
8 Signal ground to digital sound system control module
9 Right front signal to digital sound system control module
10 Audio Pilot in/out (not used)
11 Right rear signal to digital sound system control module
12 LF (+) from telephone transceiver

D - 8-pin Multi-pin Connector (T8a) Black





9 CAN-Bus High (Infotainment)
10 CAN-Bus Low (Infotainment)
11 LF mute
12 Terminal 31
13 Positive switched to digital sound system control module
14 Anti-theft warning system (not used)
15 Terminal 30
16 Permanent positive connected with PIN 15 (anti-theft warning system)
