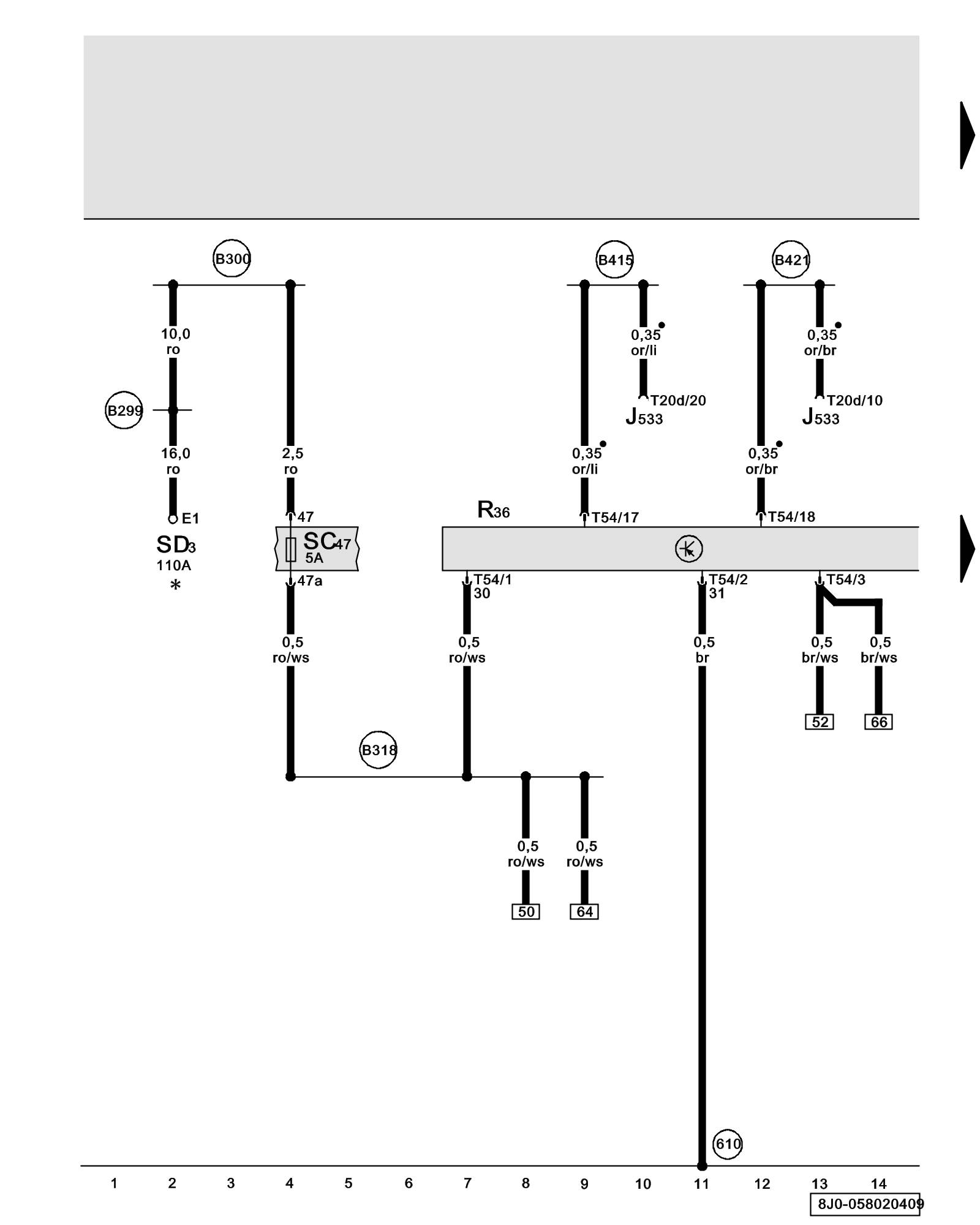

Diagram 58/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone Transceiver, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J533 - Data Bus On Board Diagnostic Interface Component Locations

R36 - Telephone Transceiver Phone System Component Overview

SC47 - Fuse 47 (on fuse panel C)

SD3 - Fuse 3 (on fuse panel D) Fuses (SD) on Main Fuse Carrier

T20d - 20-Pin Connector, black, on data bus on board diagnostic interface

T54 - 54-Pin Connector (Connector A), on telephone transceiver

(610) - Ground Connection (Audio) (under center console, front) Locations

(B299) - Plus Connection 3 (30) (in main wiring harness)

(B300) - Plus Connection 4 (30) (in main wiring harness)

(B318) - Plus Connection 4 (30a) (in main wiring harness)

(B415) - Infotainment CAN-Bus High Connection 1 (in main wiring harness)

(B421) - Infotainment CAN-Bus Low Connection 1 (in main wiring harness)

^ - CAN-Bus (data wire)

* - Main fuse panel, in right rear luggage compartment on battery
