Diagram 26/5 (Tracks 43-56)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

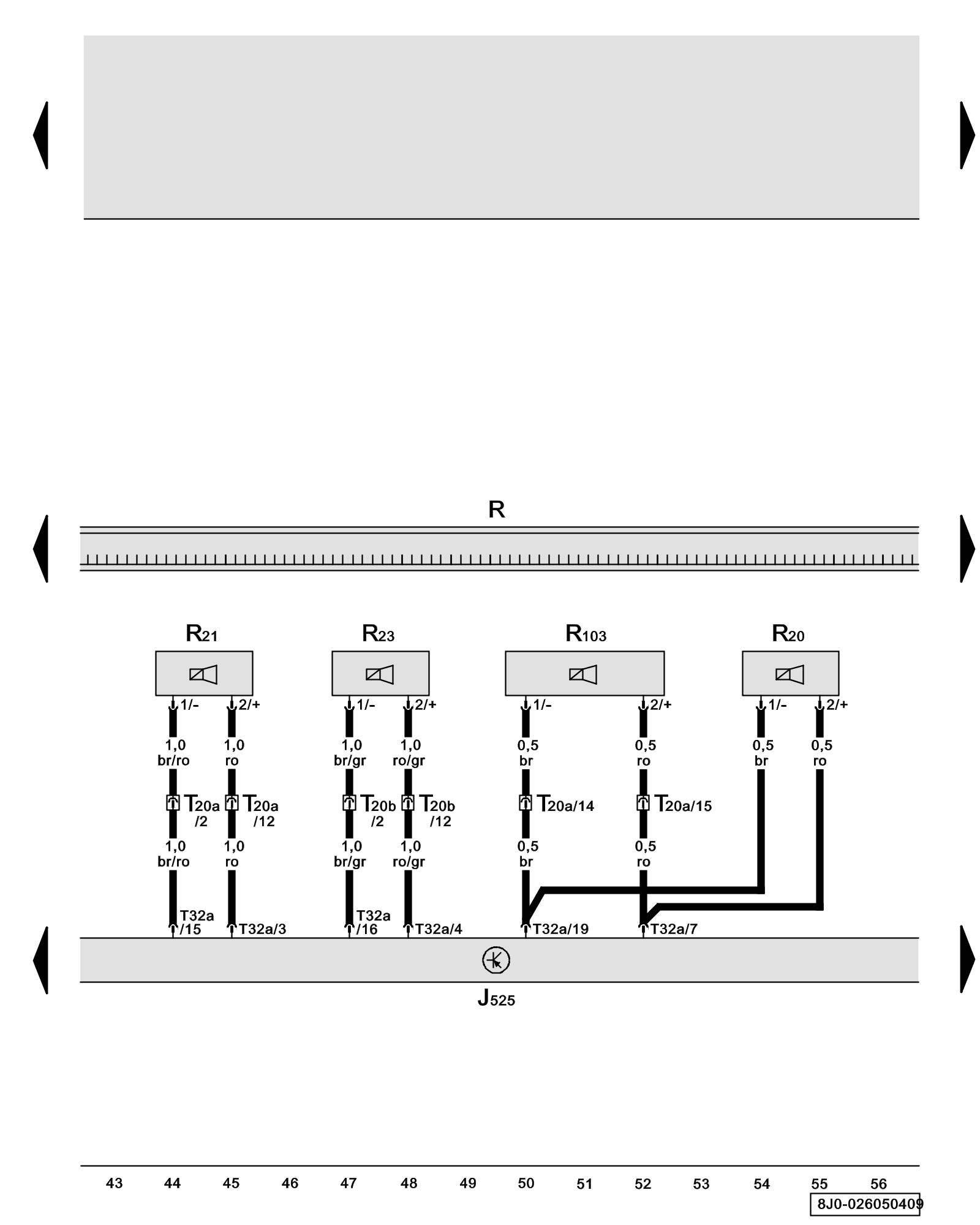

Radio, Digital Sound System Control Module, Left Front Treble Speaker, Left and Right Front Bass Speaker, Left Front Midrange Speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital Sound System Control Module Component Locations

R - Radio Instrument Panel Wiring Harness Routing

R20 - Left Front Treble Speaker Instrument Panel Wiring Harness Routing

R21 - Left Front Bass Speaker Door Routing

R23 - Right Front Bass Speaker Door Routing

R103 - Left Front Midrange Speaker Door Routing

T20a - 20-Pin Connector, black, on front left door Door Routing

T20b - 20-Pin Connector, black, on front right door

T32a - 32-Pin Connector, black, on digital sound system control module
