Diagram 34/5 (Tracks 43-56)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

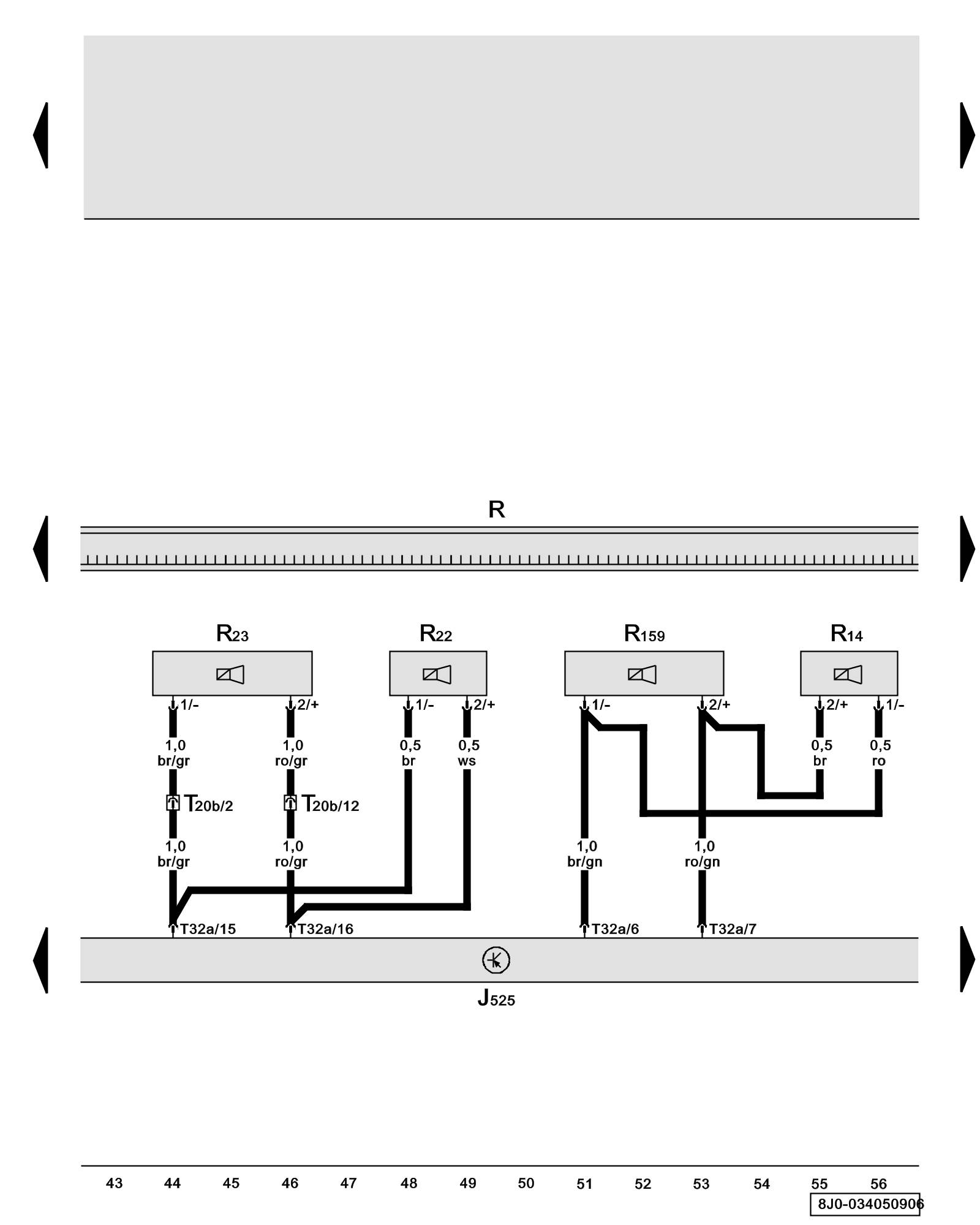

Radio, Digital Sound System Control Module, Left Rear Treble Speaker, Right Front Treble Speaker, Right Front Bass Speaker, Left Rear Mid/Low Range Speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital Sound System Control Module Component Locations

R - Radio Instrument Panel Wiring Harness Routing

R14 - Left Rear Treble Speaker

R22 - Right Front Treble Speaker Instrument Panel Wiring Harness Routing

R23 - Right Front Bass Speaker Door Routing

R159 - Left Rear Mid/Low Range Speaker

T20b - 20-Pin Connector, black, on front right door

T32a - 32-Pin Connector, black, on digital sound system control module
