Diagram 48/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

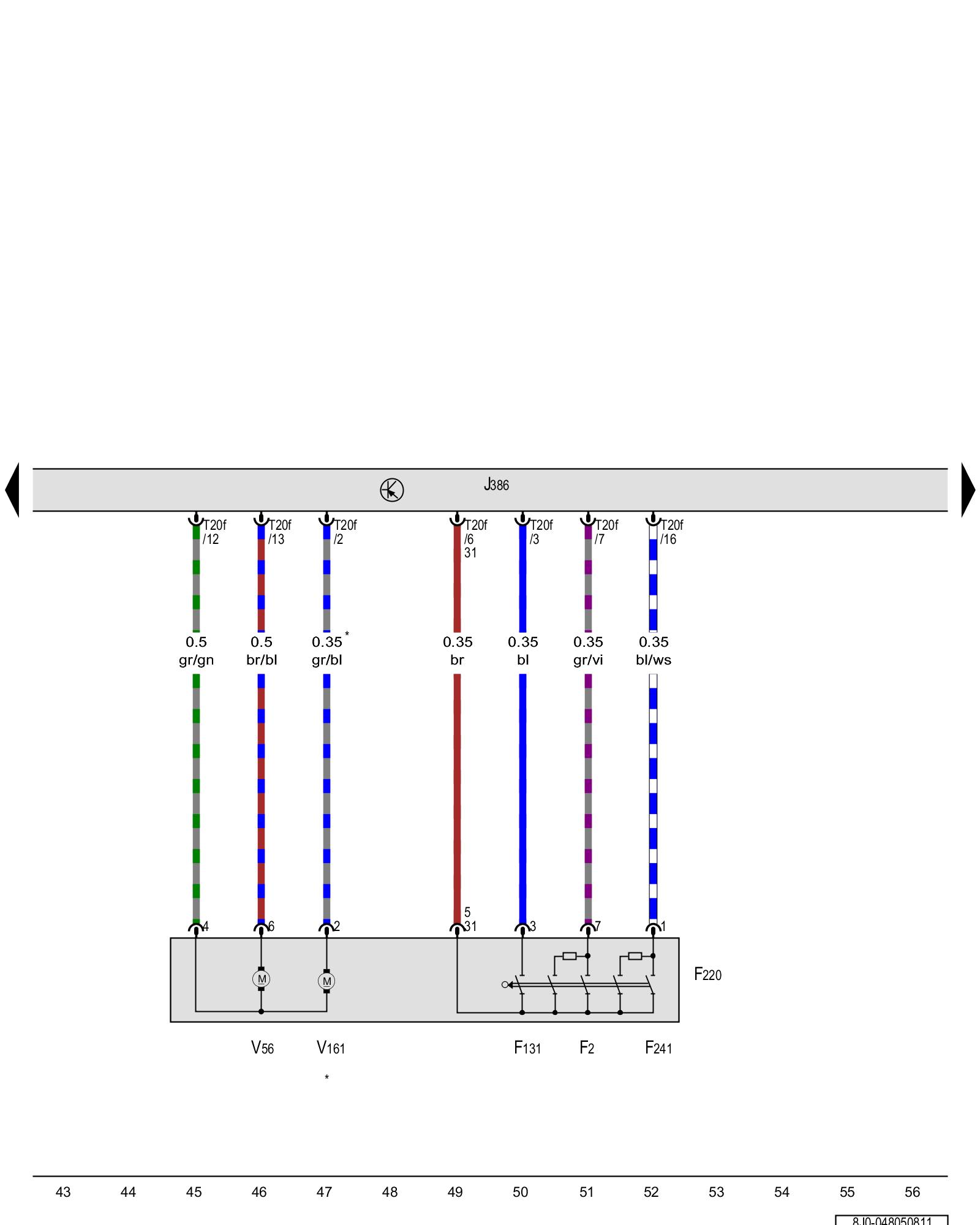

Driver central locking lock unit, Driver door control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F2 - Driver door contact switch

F131 - Left front central locking system actuator Central Locking Component Overview

F220 - Driver central locking lock unit Door Routing

F241 - Driver lock cylinder contact switch

J386 - Driver door control module Component Locations

T20f - 20-pin connector Driver's Door Control Module -J386-

V56 - Driver door central locking system motor Central Locking Component Overview

V161 - Driver door central locking -SAFE- motor Central Locking Component Overview

* - Not for USA

Previous Diagram 48/4 (Tracks 29-42)

Next Diagram 48/6 (Tracks 57-70)
