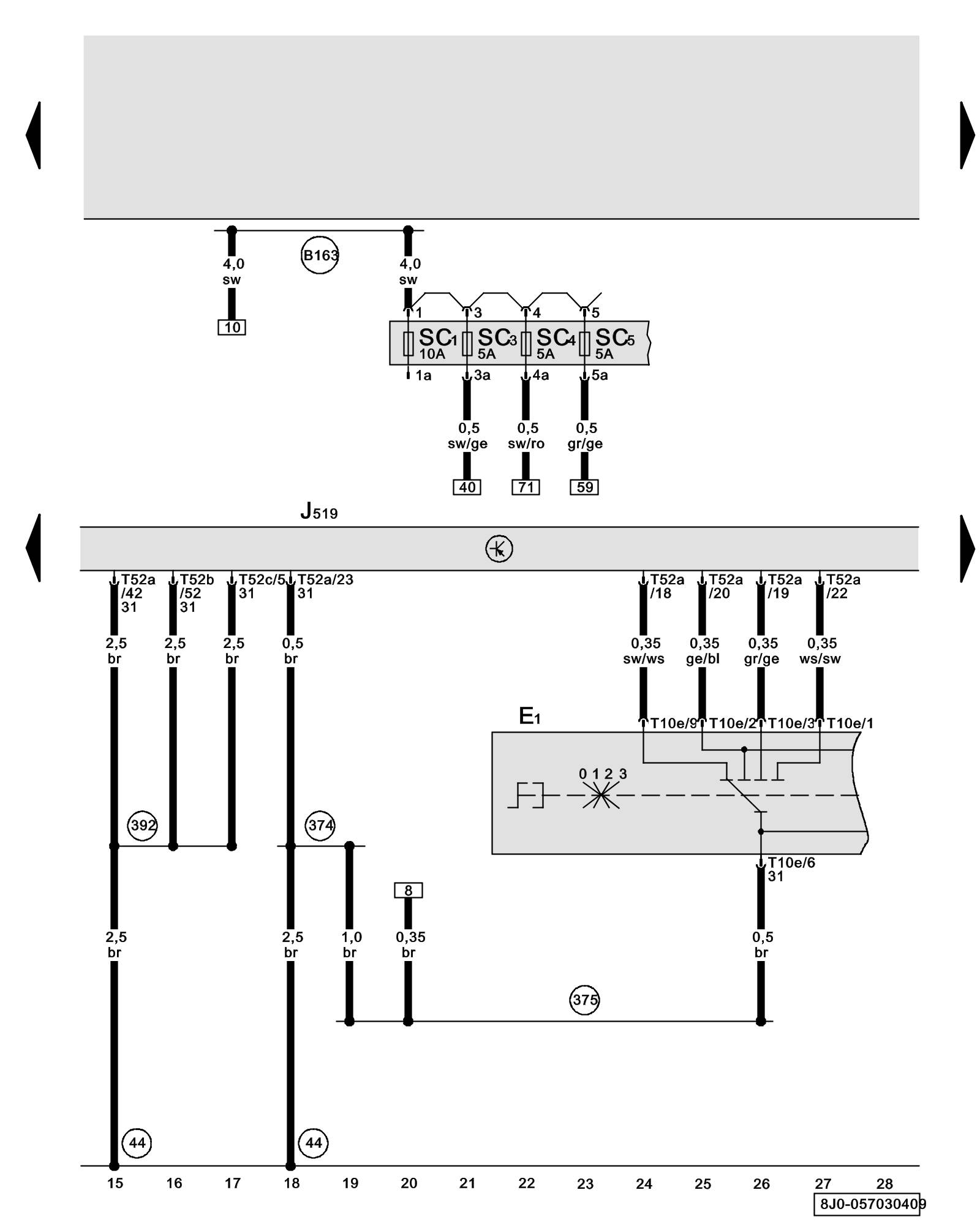

Diagram 57/3 (Tracks 15-28)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Light Switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch Instrument Panel Wiring Harness Routing

J519 - Vehicle Electrical System Control Module Component Locations

SC1 - Fuse 1 (on fuse panel C)

SC3 - Fuse 3 (on fuse panel C)

SC4 - Fuse 4 (on fuse panel C)

SC5 - Fuse 5 (on fuse panel C)

T10e - 10-Pin Connector, black (Connector A), on light switch

T52a - 52-Pin Connector, black, on vehicle electrical system control module

T52b - 52-Pin Connector, yellow, on vehicle electrical system control module

T52c - 52-Pin Connector, brown, on vehicle electrical system control module

(44) - Ground Connection (on left lower A-pillar) Locations

(374) - Ground Connection 9 (in main wiring harness)

(375) - Ground Connection 10 (in main wiring harness)

(392) - Ground Connection 27 (in main wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)
