Diagram 18/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


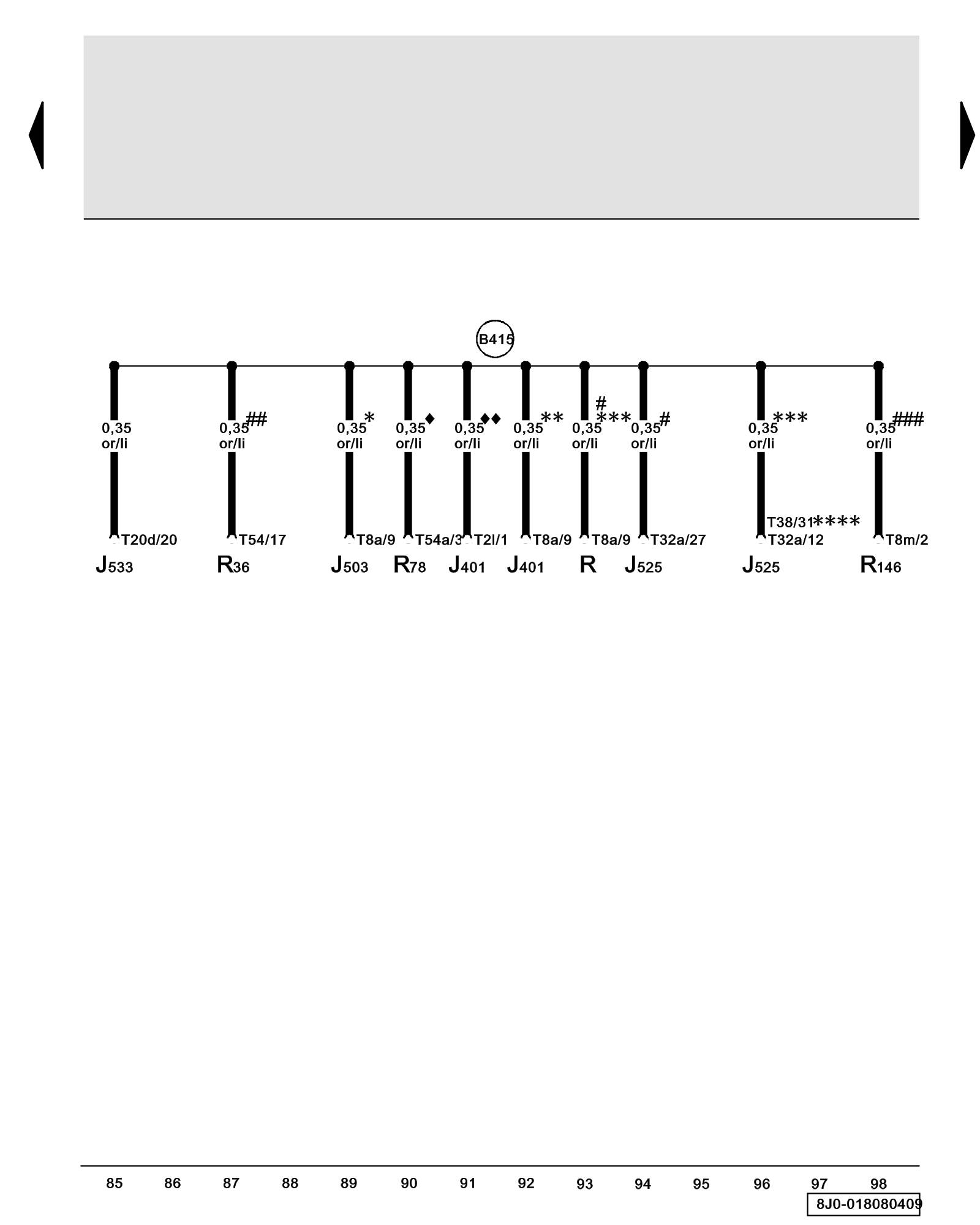

Infotainment CAN-Bus High 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J401 - Navigation System Control Module with CD Drive Instrument Panel Wiring Harness Routing

J503 - Radio/Navigation Display Control Module

J525 - Digital Sound System Control Module Component Locations

J533 - Data Bus On Board Diagnostic Interface Component Locations

R - Radio Instrument Panel Wiring Harness Routing

R36 - Telephone Transceiver Phone System Component Overview

R78 - TV Tuner Component Locations

R146 - Satellite Radio

T2l - Double Connector, black (Connector CAN), on navigation system control module with CD drive

T8a - 8-Pin Connector, black, radio connector D

T8m - 8-Pin Connector, on satellite radio

T20d - 20-Pin Connector, black, on data bus on board diagnostic interface

T32a - 32-Pin Connector, black, on digital sound system control module

T38 - 38-Pin Connector, black, on digital sound system control module

T54 - 54-Pin Connector (Connector A), on telephone transceiver

T54a - 54-Pin Connector, on TV Tuner

(B415) - Infotainment CAN-Bus High Connection 1 (in main wiring harness)

* - Navigation System RNS-Low (7Q9)

** - Navigation System RNS-E (7Q2)

*** - Radio with Standard Sound system (9VD)

**** - from February 2009

# - Radio with sound system BOSE (8RY)

## - Models with cellular telephone preparation (9ZF)

### - Only USA

• - Models with TV Tuner

•• - Models with navigation system (7Q4)
