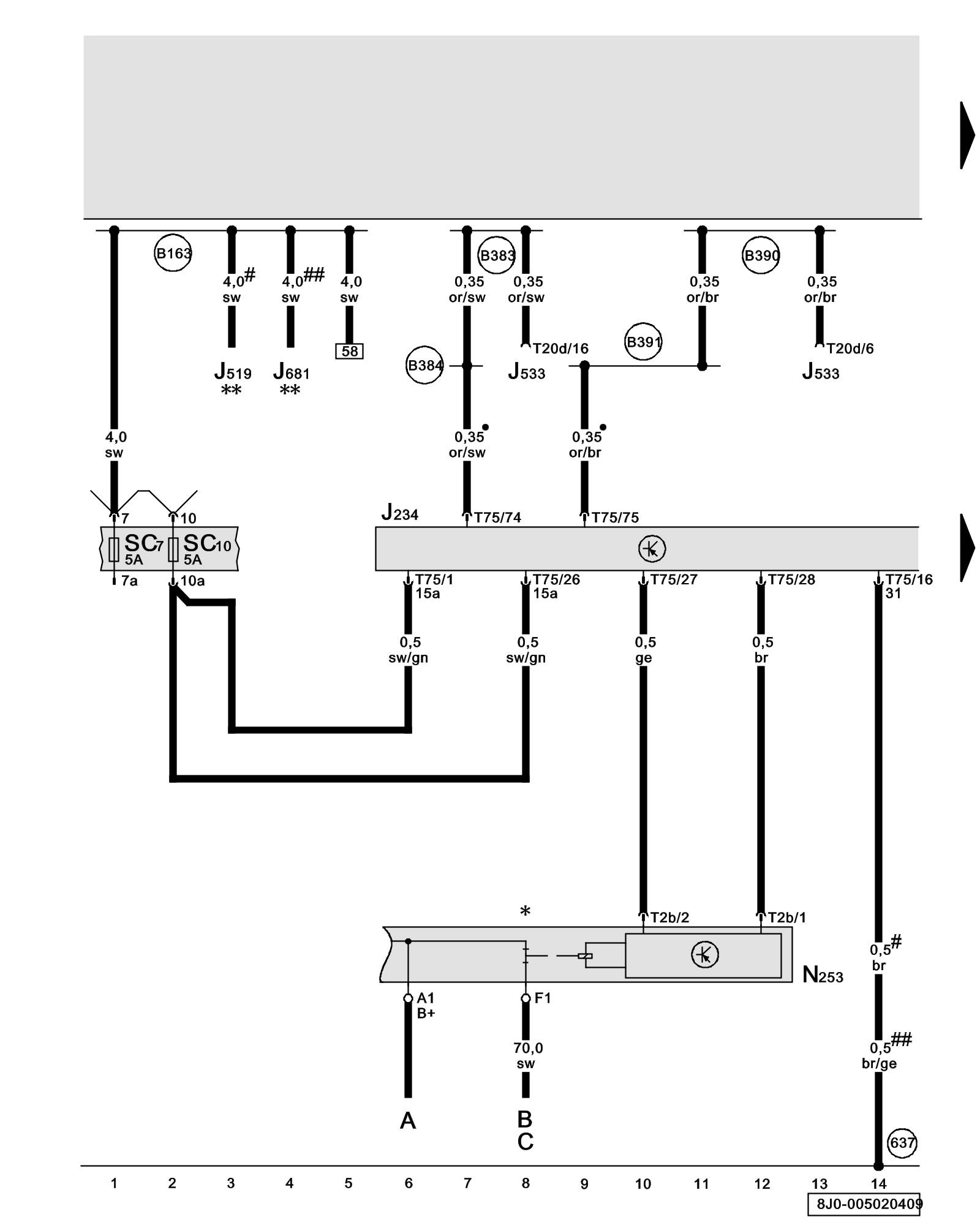

Diagram 5/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag Control Module, Battery Interrupt Igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery Harness Locations

B - Starter

C - Generator (GEN)

J234 - Airbag Control Module Component Locations

J519 - Vehicle Electrical System Control Module Component Locations

J533 - Data Bus On Board Diagnostic Interface Component Locations

J681 - Power Supply Relay 2 (terminal 15) Relay Carrier on Vehicle Electrical System Control Module, from June 2009

N253 - Battery Interrupt Igniter Harness Locations

SC7 - Fuse 7 (on fuse panel C)

SC10 - Fuse 10 (on fuse panel C)

T2b - Double Connector, purple, on battery interrupt igniter

T20d - 20-Pin Connector, black, on data bus on board diagnostic interface

T75 - 75-Pin Connector, yellow, on airbag control module

(637) - Airbag Control Module Ground Connection Locations

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B383) - Powertrain CAN-Bus High Connection 1 (in main wiring harness)

(B384) - Powertrain CAN-Bus High Connection 2 (in main wiring harness)

(B390) - Powertrain CAN-Bus Low Connection 1 (in main wiring harness)

(B391) - Powertrain CAN-Bus Low Connection 2 (in main wiring harness)

^ - CAN-Bus (data wire)

* - Main fuse panel, in right rear luggage compartment on battery

** - => Wiring Diagram Standard Equipment

# - Through May 2009

## - from June 2009

Next Diagram 5/3 (Tracks 15-28)
